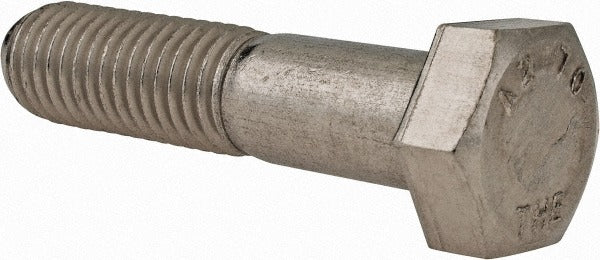

Value Collection HC1X14060-010BX Hex Cap Screw M14x2

Product Description

The VALUE COLLECTION HC1X14060-010BX is a metric hex head cap screw used to fasten components in mechanical, structural, and equipment assemblies. It is manufactured from 18-8 austenitic stainless steel, Grade A2, which provides resistance to corrosion in wet, outdoor, and mildly chemical environments. The screw has a partially threaded shank, which is standard for through-bolt applications where clamping load is distributed along the unthreaded grip length. Thread size is M14 x 2.00 with a 60 mm length under the head and a 22 mm hex drive. It conforms to DIN 931. Machinists, millwrights, pipefitters, and general contractors install this fastener wherever a corrosion-resistant metric hex bolt is required.

This cap screw is suited for residential and commercial mechanical installations, structural connections, pump and equipment mounting, and any application calling for a DIN 931 partially threaded metric bolt. The M14 x 2.00 thread pitch is a standard coarse metric thread, making it compatible with M14 x 2.00 tapped holes and standard metric hex nuts. The 18-8 Grade A2 stainless steel construction makes it appropriate for outdoor, marine-adjacent, pool equipment, and plumbing environments where carbon steel would corrode. Each unit is sold individually.

Key Features

• 18-8 austenitic stainless steel, Grade A2 construction for corrosion resistance
• Partially threaded shank per DIN 931 standard
• M14 x 2.00 coarse metric thread
• 60 mm length under head for through-bolt or deep tapped applications
• 22 mm hex drive accepts standard metric wrenches and sockets
• Sold as a single unit with no minimum order beyond one piece

Compatibility

Designed as a DIN 931 partially threaded metric hex cap screw for use in any M14 x 2.00 tapped hole or with a standard M14 x 2.00 metric hex nut. Suitable for general mechanical, structural, and equipment fastening applications requiring Grade A2 stainless steel.

Installation Notes

Installation is performed with a standard 22 mm open-end, box, or socket wrench. Verify the mating thread is M14 x 2.00 before installation to avoid cross-threading. For stainless steel fasteners, apply an anti-seize compound to the threads to prevent galling, which is a common failure mode with austenitic stainless hardware. Follow applicable mechanical or structural codes for proper torque requirements specific to the joint design.
