Value Collection H2600Z3 Grease Fitting 1/8-28 Bspt

Product Description

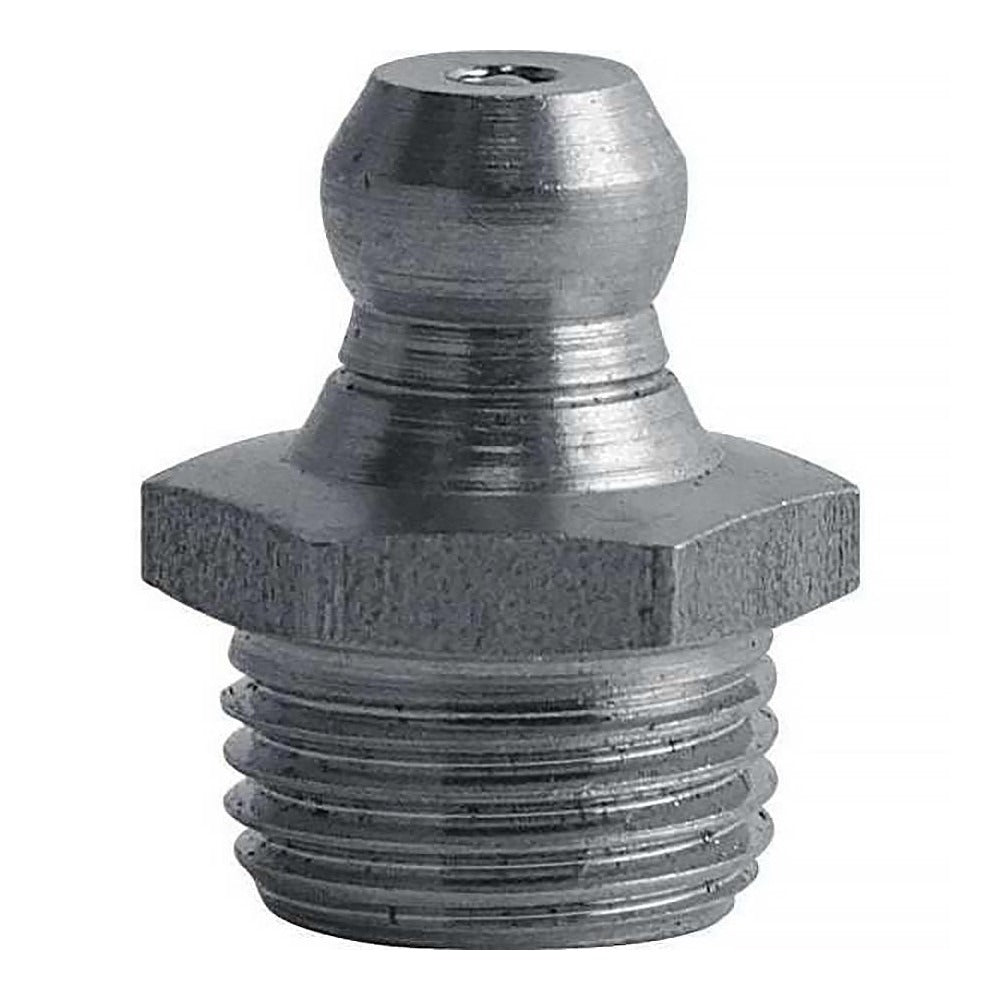

The VALUE COLLECTION H2600Z3 is a straight-head grease fitting threaded to a 1/8-28 taper BSPT specification, used to introduce lubricant into bearing housings, linkages, pins, and other lubrication points in mechanical equipment. Constructed from steel with a clear zinc trivalent finish, it resists corrosion in typical shop and field environments. The fitting stands 0.63 inches overall in height with a shank length of 0.22 inches and a thread length of 0.15 inches. An 11 mm hex head allows standard wrench engagement. Installation and replacement are performed by millwrights, mechanics, and maintenance technicians across industrial, agricultural, and general mechanical applications.

This grease fitting is suited for equipment that uses BSPT-threaded lubrication ports, common in machinery of British and international manufacture. The straight head orientation allows direct grease-gun access when the lubrication port is unobstructed and accessible from a perpendicular angle. Typical applications include industrial gearboxes, conveyor systems, agricultural equipment, and general-purpose machinery requiring periodic re-lubrication at maintenance intervals. The clear zinc trivalent finish provides a baseline level of corrosion protection for indoor and covered outdoor service environments.

Key Features

• Straight head angle for direct grease-gun coupling at accessible ports
• 1/8-28 taper BSPT thread for compatibility with British Standard Pipe Tapered lubrication ports
• Steel construction for durability under grease-gun pressure
• Clear zinc trivalent finish for corrosion resistance
• 11 mm hex head for standard wrench or socket installation
• Compact profile at 0.63 inches overall height and 0.15 inches thread length

Compatibility

Designed for mechanical equipment with 1/8-28 taper BSPT-threaded lubrication ports, commonly found on machinery of British and international origin requiring periodic grease lubrication.

Installation Notes

Installation is performed by mechanics or maintenance technicians using an 11 mm wrench or socket. De-energize or lock out the equipment before servicing any lubrication point. Thread the fitting into the BSPT-tapped port by hand first to avoid cross-threading, then snug with a wrench — taper threads seal on the thread form itself and do not require a separate sealant. Do not overtighten, as this can distort the port threads or shear the fitting head.
