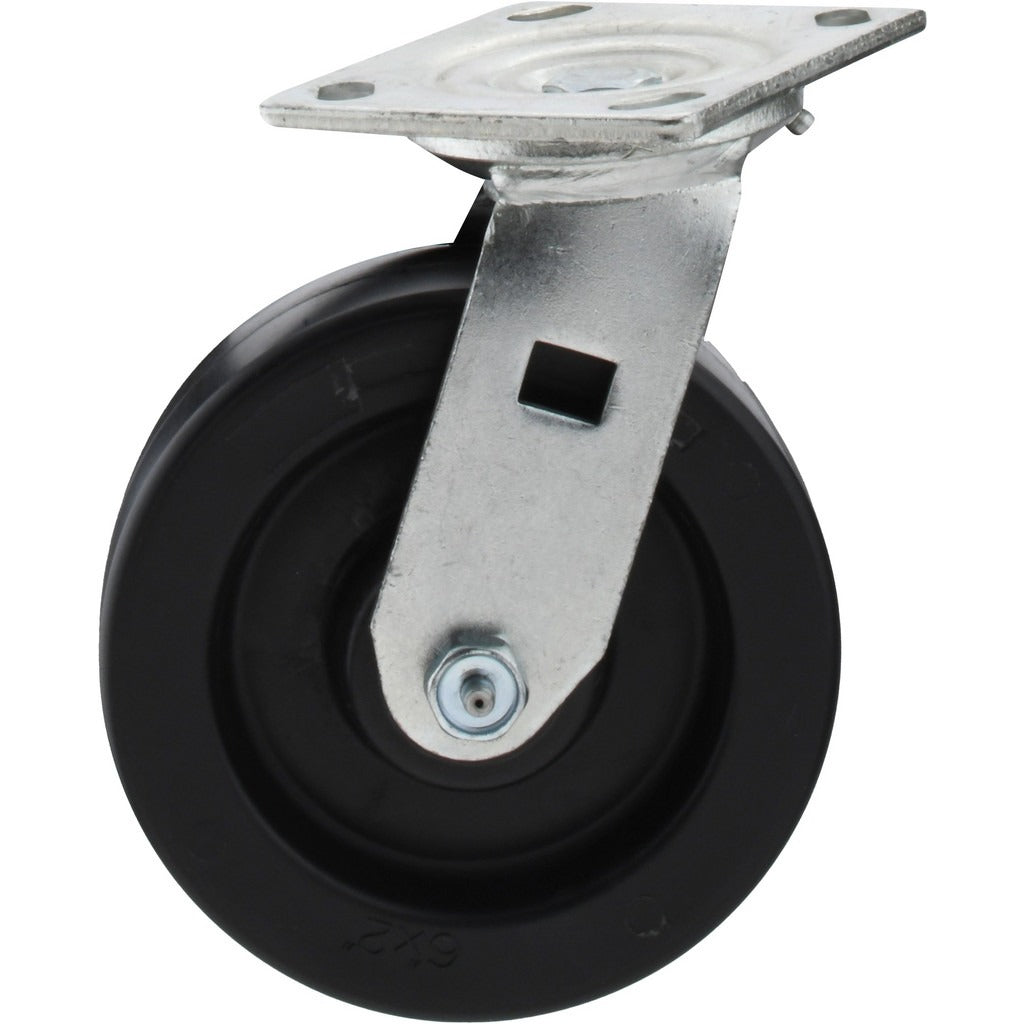

Value Collection GMC-SH-0074 Swivel Caster 800 Lb 6in

Product Description

The VALUE COLLECTION GMC-SH-0074 is a swivel top plate caster built for heavy-duty material handling applications. It features a 6-inch diameter, 2-inch wide polyolefin wheel mounted on a stamp-formed steel frame with a zinc finish. The roller bearing provides smooth, consistent rotation under load. Rated at 800 lb capacity, this caster is suited for carts, racks, shelving, and industrial equipment where reliable mobility is required. It installs via a 4 x 4.5-inch top plate and reaches an overall height of 7.5 inches. The swivel design allows full directional movement across flat surfaces. Maintenance teams, facilities technicians, and equipment fabricators are the typical installers.

This caster is designed for material handling environments including warehouses, manufacturing floors, distribution centers, and workshop settings. The polyolefin wheel resists moisture and common shop-floor chemicals while protecting hard floor surfaces from damage. With an 800 lb load rating and roller bearing construction, it handles frequent movement of loaded carts and equipment. The top plate mount makes it compatible with a wide range of fabricated frames and standard caster mounting patterns. Compatible reference: For use with item 39664800 as noted in supplier specifications.

Key Features

• 800 lb load capacity for heavy-duty material handling use
• 6-inch diameter polyolefin wheel with 2-inch width for stable roll
• Roller bearing for smooth swivel action under load
• Stamp-formed steel construction with zinc finish for corrosion resistance
• 4 x 4.5-inch top plate mount fits standard fabricated frames
• 7.5-inch overall height suits typical cart and rack clearance requirements

Compatibility

For use with item 39664800 per supplier specifications. Designed as a direct-mount swivel caster for material handling carts, racks, and equipment frames using a standard 4 x 4.5-inch top plate bolt pattern.

Installation Notes

Installation requires bolting the top plate to the equipment frame using hardware appropriate for the load rating. Verify that the mounting surface and fasteners are rated to support the full 800 lb wheel capacity before placing into service. Remove the equipment from service and ensure it is unloaded and stable before replacing or installing casters. Follow applicable facility safety and maintenance procedures when working on load-bearing rolling equipment.
