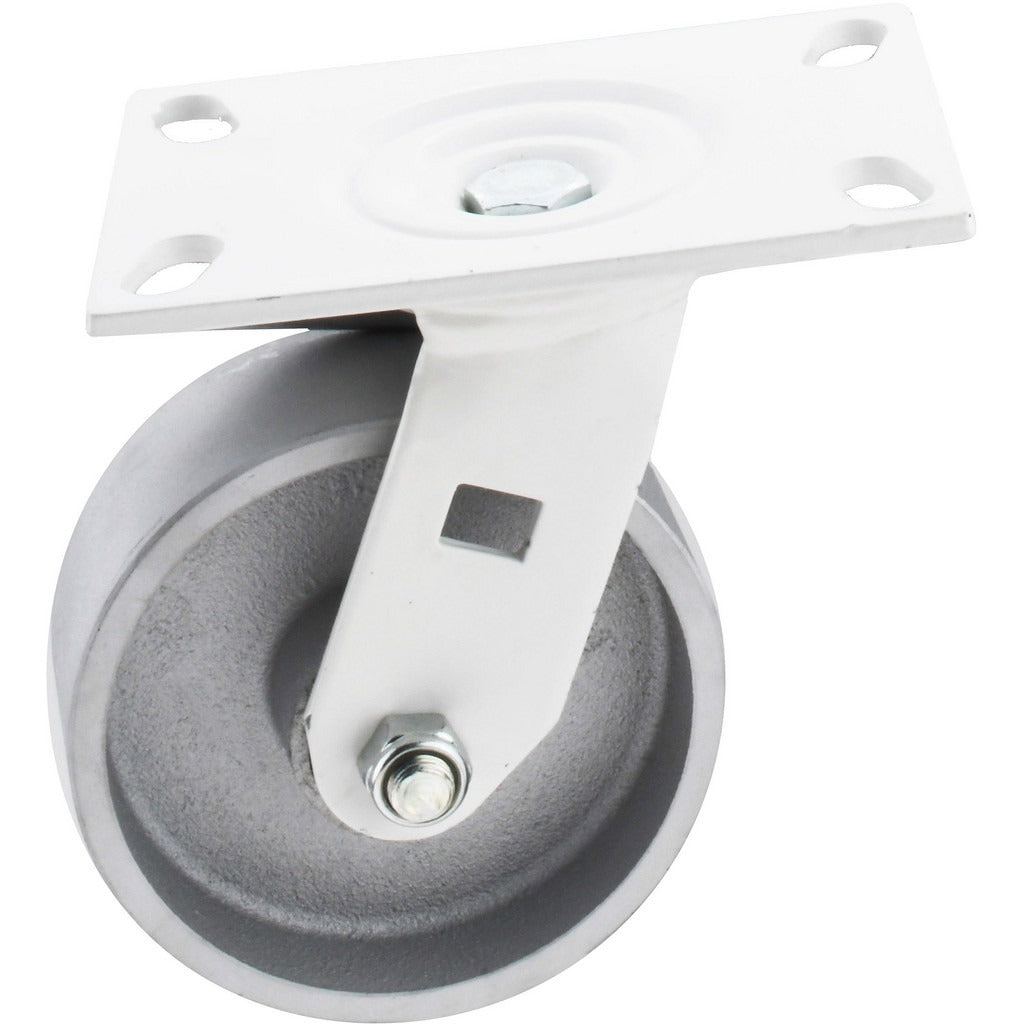

Value Collection GMC-SH-0028 Swivel Caster 1000 Lb 5 Inch

Product Description

The VALUE COLLECTION GMC-SH-0028 is a swivel top plate caster built for demanding general-purpose material handling applications. The wheel is constructed from semi-steel and measures 5 inches in diameter with a 2-inch width, supported by a roller bearing assembly for smooth, consistent load movement. The overall assembly height is 6.5 inches. Rated for 1,000 pounds of load capacity, this caster uses a stamp-formed construction and features a powder-coated finish to resist corrosion and wear on the shop floor or in industrial environments. It is installed by maintenance technicians, fabricators, and shop mechanics wherever heavy-duty rolling support is required.

This caster is suited for general-purpose use on carts, workbenches, equipment bases, and industrial platforms in both light manufacturing and warehouse settings. The swivel mount allows 360-degree rotation for full maneuverability. The top plate measures 4.5 inches by 6.25 inches and is designed to bolt directly to flat-surface mounting applications. The roller bearing type makes it appropriate for moderate-speed movement under sustained load.

Key Features

• 1,000 lb rated load capacity for heavy general-purpose use
• 5-inch diameter semi-steel wheel with 2-inch width
• Roller bearing for smooth, low-friction swivel rotation
• Stamp-formed construction for structural rigidity
• Powder-coated finish for corrosion resistance
• 4.5 inch by 6.25 inch top plate for standard bolt-pattern mounting

Compatibility

Designed as a general-purpose swivel top plate caster for use with standard flat-surface mounting platforms including carts, equipment stands, and fabricated bases requiring a 4.5 inch by 6.25 inch bolt plate footprint.

Installation Notes

Installation is performed by maintenance technicians or fabricators using standard hand tools. Power down or de-energize any equipment before attaching or removing casters from motorized platforms. Ensure the mounting surface is flat, structurally sound, and rated to support the combined load distributed across all casters. Do not exceed the stated 1,000 lb per-caster load rating.
