Value Collection GMC-SH-0027 Swivel Top Plate Caster 1000 Lb

Product Description

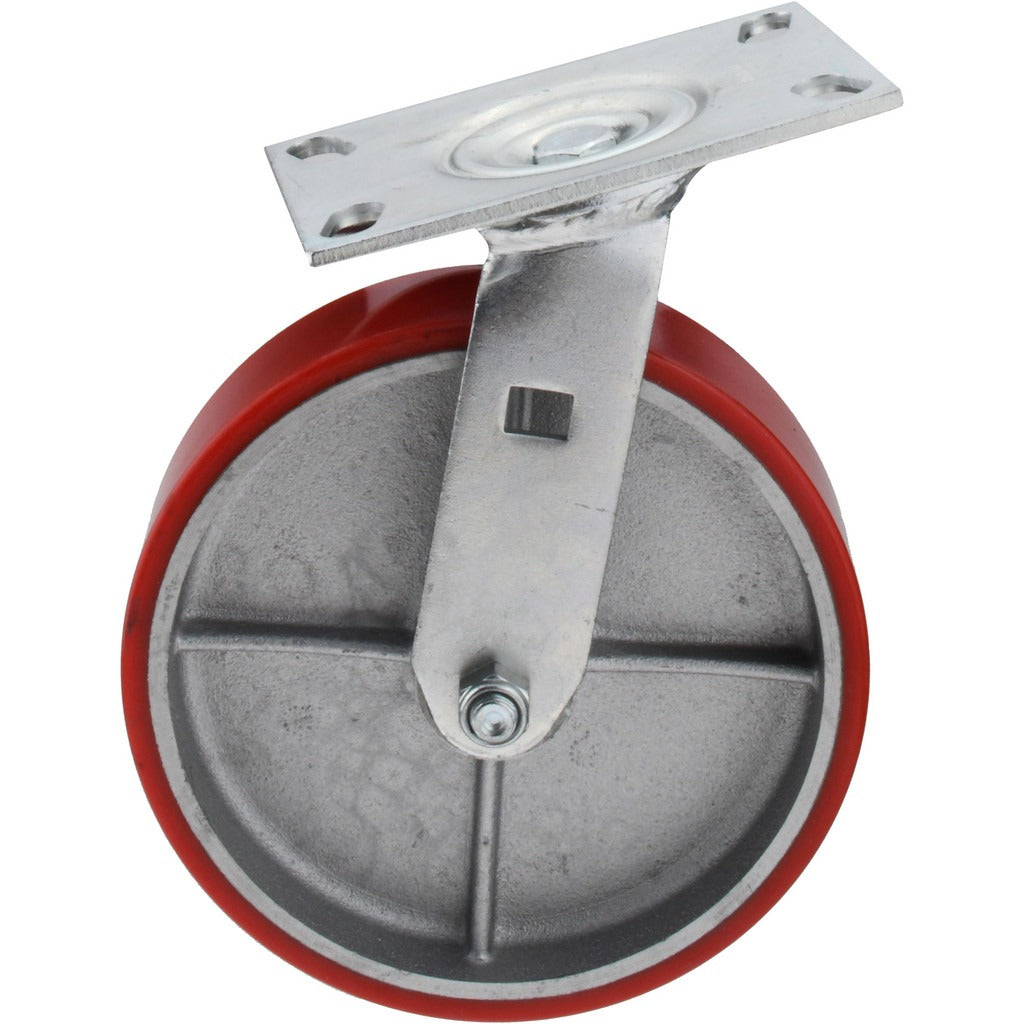

The VALUE COLLECTION GMC-SH-0027 is a swivel top plate caster designed for general-purpose industrial and commercial material handling applications. It features an 8-inch diameter polyurethane wheel with a 2-inch width, mounted on a stamp-formed swivel yoke with a zinc finish for corrosion resistance. The wheel is a polyurethane mold-on-aluminum construction, delivering load support up to 1,000 pounds. A roller bearing provides smooth rolling under load and supports frequent directional changes. The overall assembled height is 9.5 inches. This caster is installed by maintenance technicians, fabricators, and equipment assemblers working on carts, workbenches, dollies, and industrial equipment frames.

This caster is suited for general-purpose use on shop floors, warehouses, and light manufacturing environments. The top plate mount attaches directly to the underside of equipment frames or platforms. The 4.5 x 6.25 inch mounting plate accommodates standard bolt patterns found on a wide range of carts and material handling equipment. The polyurethane wheel performs well on smooth concrete, tile, and sealed flooring surfaces, offering floor protection while maintaining roll efficiency under heavy loads.

Key Features

• 8-inch polyurethane mold-on-aluminum wheel with 2-inch width for load distribution
• 1,000 lb static load capacity for heavy-duty general-purpose use
• Roller bearing for smooth, low-effort rolling under sustained loads
• Stamp-formed swivel yoke construction with zinc finish for corrosion resistance
• Top plate mount with 4.5 x 6.25 inch plate for direct frame attachment
• 9.5 inch overall height for standard equipment clearance

Compatibility

Designed as a general-purpose swivel top plate caster for industrial carts, workbenches, dollies, and equipment frames requiring an 8-inch wheel and top plate mounting configuration. Referenced for use with item 39664776 per supplier data.

Installation Notes

Installation is performed by maintenance personnel or equipment fabricators using standard hand tools. Power down or de-energize any motorized equipment before mounting or replacing casters. Ensure the mounting surface and bolt pattern match the 4.5 x 6.25 inch plate dimensions and that fasteners are properly torqued per the equipment manufacturer guidelines. Verify total load across all casters does not exceed the rated capacity of the weakest installed unit.
