Value Collection GMC-SH-0008 Rigid Caster 1800 Lb 6 Inch

Product Description

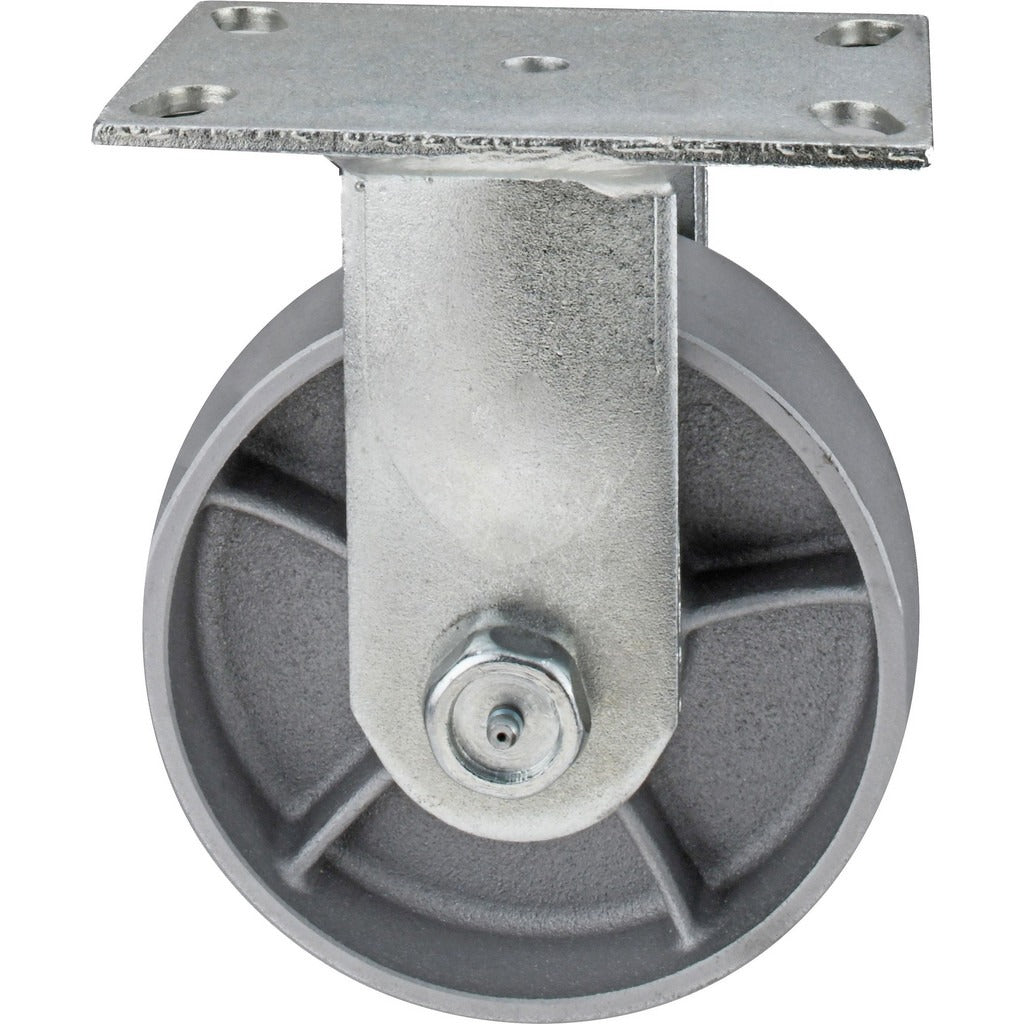

The VALUE COLLECTION GMC-SH-0008 is a rigid top plate caster built for heavy-duty material handling applications. It uses a semi-steel wheel measuring 6 inches in diameter and 2.5 inches wide, rated to carry up to 1,800 pounds. The caster rides on a roller bearing housed in a stamp-formed steel frame and mounts via a 4.5 x 6.25 inch top plate. Overall assembled height is 7.5 inches. A zinc finish provides basic corrosion resistance. This caster is installed by maintenance technicians, industrial equipment assemblers, and facilities personnel who need a fixed-direction, high-load wheel solution.

This caster is suited for material handling equipment in industrial, warehouse, and manufacturing environments. Rigid casters of this load class are commonly used on heavy carts, racks, dollies, and equipment bases where straight-line travel is required. The 1,800 lb load rating makes it appropriate for loaded utility carts and fabricated steel transport frames. The stamp-formed construction keeps weight manageable at 12 pounds per unit while maintaining structural integrity under sustained load.

Key Features

• 1,800 lb load capacity for heavy industrial material handling
• 6 inch diameter semi-steel wheel with 2.5 inch width
• Roller bearing provides smooth rolling under load
• Stamp-formed steel construction with zinc finish
• 4.5 x 6.25 inch top plate for bolt-on installation
• Rigid mount style maintains fixed travel direction

Compatibility

Designed as an OEM-style replacement or new-build component for heavy-duty material handling carts, dollies, and equipment frames requiring a rigid top plate caster with a 4.5 x 6.25 inch mounting footprint.

Installation Notes

Installation is performed by maintenance technicians or fabricators using standard hand tools. Before replacing a caster on loaded equipment, relieve the load and block the platform securely to prevent movement. Mounting hardware should be sized appropriately for the top plate hole pattern and the rated load. Verify that the combined load rating of all casters on the equipment meets or exceeds the maximum expected load.
