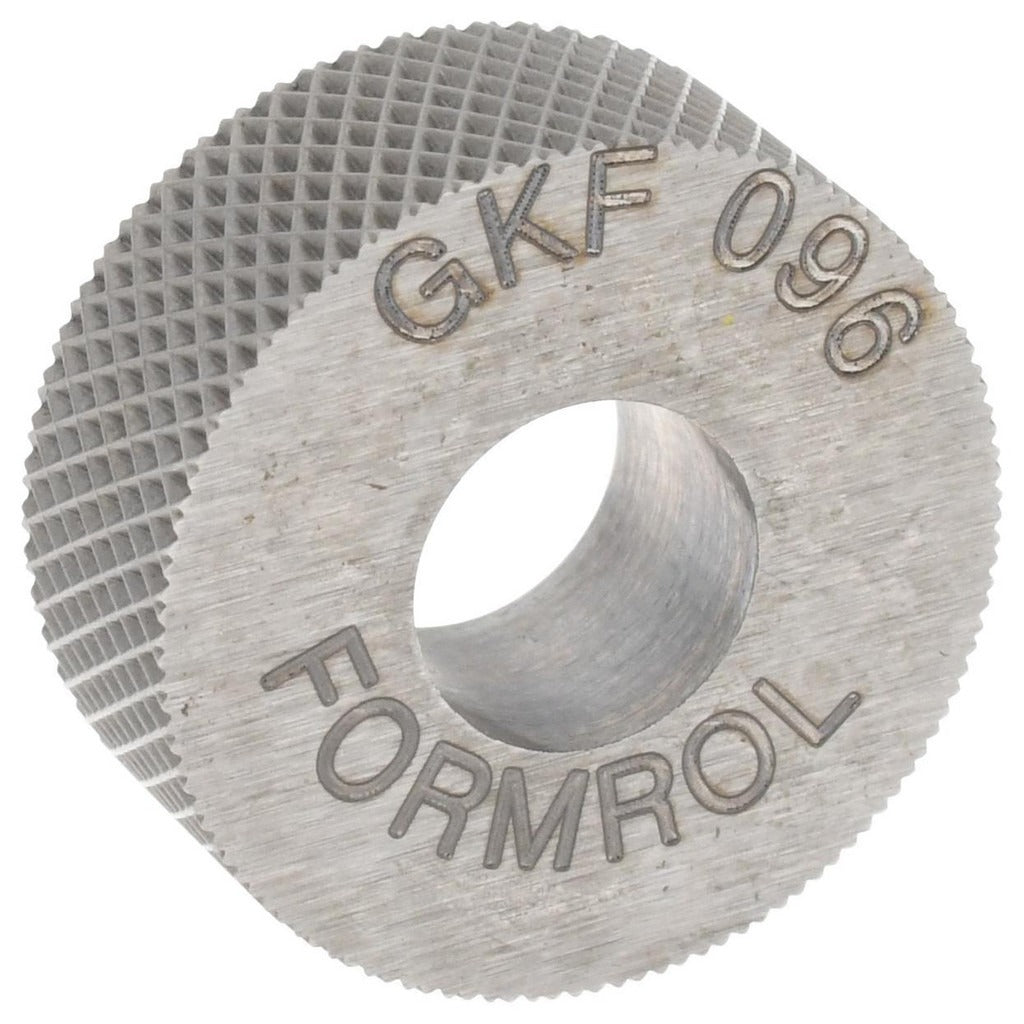

Value Collection GKF-096 Knurl Wheel 5/8 in Diamond Hss

Product Description

The VALUE COLLECTION GKF-096 is a standard form knurl wheel designed for use in manual and CNC knurling operations on metal workpieces. Manufactured from high-speed steel with a bright finish, it produces a female diamond tooth pattern using the form knurling method. The wheel measures 0.625 inches in diameter with a 0.25-inch face width and a 0.25-inch hole diameter. At 96 diametral pitch and an 80-degree included tooth angle, it generates a fine, precise diamond texture suited for grip surfaces on shafts, handles, and fastener components. It is installed and used by machinists and toolmakers on engine lathes and knurling tool holders.

This knurl wheel fits standard GK-series knurling tool holders and is appropriate for producing diamond-pattern grip textures on a variety of metal parts in both production shop and job shop environments. Typical applications include grip knurling on hand tools, instrument handles, and precision mechanical components where a consistent fine-pitch diamond surface is required. Its compact size suits small-diameter workpieces common in precision machining work.

Key Features

• Female diamond tooth pattern formed via the form knurling method for consistent, repeatable texture
• 96 diametral pitch provides a fine knurl suitable for small-diameter work and detailed grip surfaces
• 80-degree included tooth angle with a 30-degree helix angle for clean pattern formation
• High-speed steel construction for durability across ferrous and non-ferrous workpiece materials
• Bright finish on cutting surfaces reduces friction and aids pattern clarity
• 0.25-inch hole diameter fits standard GK-series knurling tool holder mandrels

Compatibility

Designed as an OEM-style replacement or direct-fit wheel for GK-series standard knurling tool holders accepting a 0.25-inch bore knurl wheel with 5/8-inch outer diameter.

Installation Notes

Installation is performed by machinists during lathe tooling setup. Ensure the knurling tool holder mandrel is clean and free of burrs before mounting the wheel. Secure the wheel according to the tool holder manufacturer's specifications and verify free rotation before engaging the workpiece. Always bring the machine to a full stop before removing or repositioning the knurl wheel.
