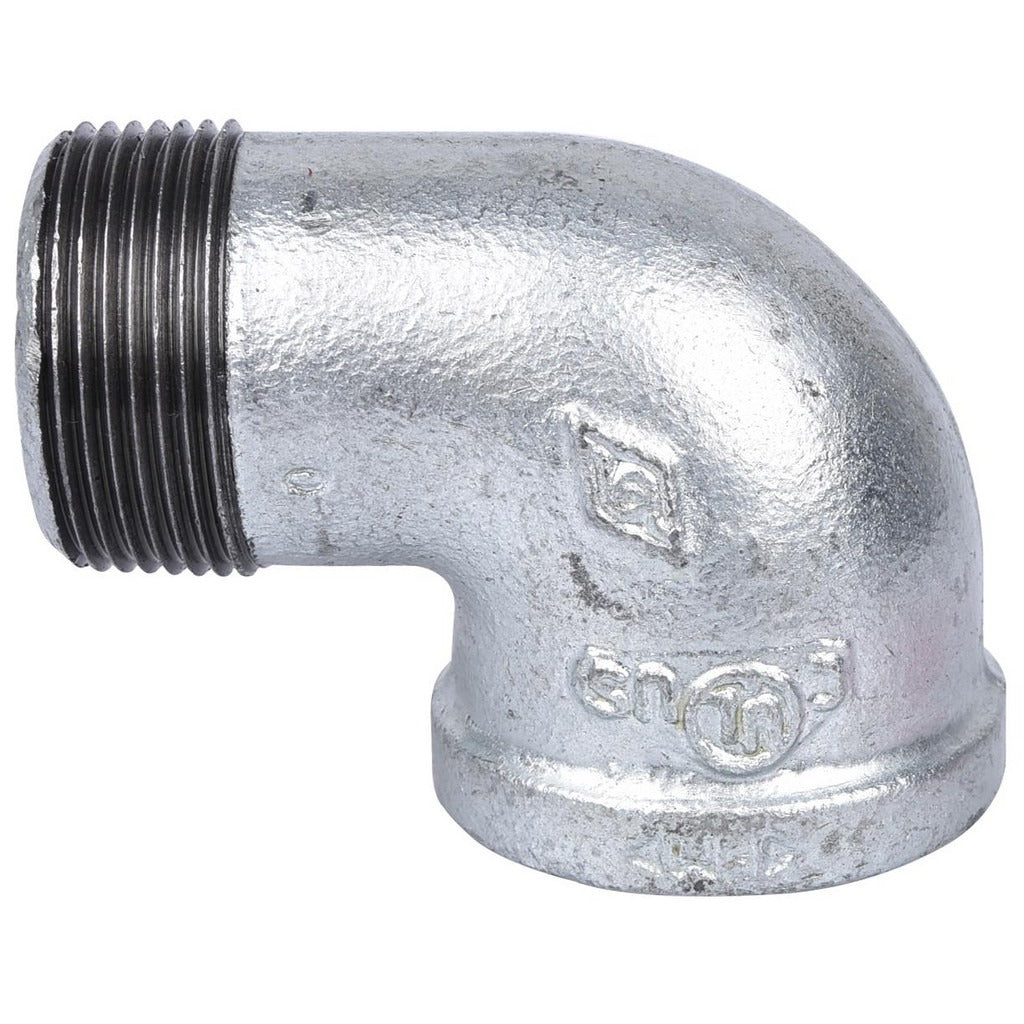

Value Collection G92 32 Malleable Iron 90 Street Elbow

Product Description

The VALUE COLLECTION G92 32 is a malleable iron 90 degree street elbow designed for threaded pipe systems in plumbing, gas distribution, and mechanical piping applications. This Class 150 fitting handles liquid and gas service up to 300 psi and steam service up to 150 psi. The galvanized finish provides added corrosion resistance for installations in demanding environments. At 1.2 pounds, it is a compact, durable component suited for residential and light commercial piping work. Licensed plumbers and pipefitters are the typical installers for this type of threaded iron fitting.

This 1-1/4 inch street elbow is used wherever a 90 degree directional change is needed in a threaded iron pipe system. The street configuration means one end accepts a male thread and the other a female thread, allowing direct connection without an additional nipple. Common applications include gas lines, water supply systems, compressed air distribution, and steam piping up to the rated pressure limits. The galvanized finish makes it appropriate for exposed or mildly corrosive environments.

Key Features

• 90 degree street elbow configuration with male and female threaded ends for direct inline direction changes
• Malleable iron construction rated for liquid and gas service at 300 psi
• Steam pressure rating of 150 psi for appropriate low-pressure steam applications
• Galvanized finish for corrosion resistance in plumbing and mechanical piping environments
• Class 150 fitting compliant with FM, ISO 228, ISO 7/1, and cULus standards
• 1-1/4 inch fitting size for standard threaded pipe connections

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1-1/4 inch threaded malleable iron pipe systems in residential and commercial plumbing, gas, and steam piping applications.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local plumbing codes and IFGC requirements for gas service. Shut off and depressurize the pipe system fully before disassembling or installing any threaded fittings. Apply appropriate thread sealant or PTFE tape rated for the service medium before making up connections. Do not exceed the rated pressure limits for the intended service type.
