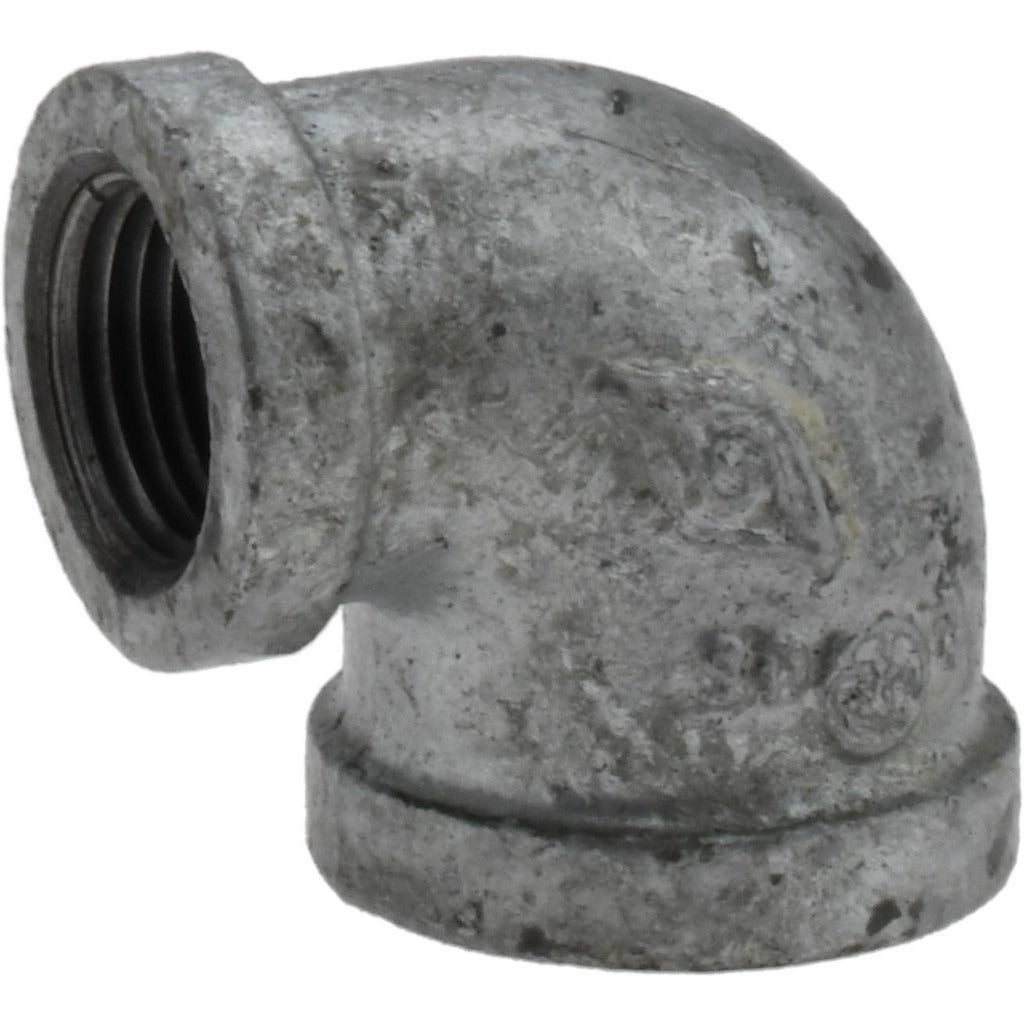

Value Collection G90R 20X15 Malleable Iron Reducing Elbow

Product Description

The VALUE COLLECTION G90R 20X15 is a malleable iron reducing elbow designed for threaded pipe systems in plumbing, HVAC, and industrial piping applications. This Class 150 fitting reduces from a 3/4-inch male or female thread to a 1/2-inch connection, allowing direction changes while transitioning between pipe sizes in a single fitting. It carries a liquid and gas pressure rating of 300 psi and a steam pressure rating of 150 psi. The galvanized finish provides corrosion resistance in both wet and dry environments. Licensed plumbers, pipefitters, and HVAC technicians install this fitting in new construction and retrofit work.

This reducing elbow is suited for residential and light commercial piping systems carrying water, gas, steam, or other compatible media within its rated pressure limits. It meets FM, cULus, ISO 228, and ISO 7/1 standards, making it appropriate for installations that require listed or approved fittings. Typical applications include branch lines, riser connections, and equipment drops where a directional change and pipe size reduction are needed at the same point.

Key Features

• Malleable iron construction with galvanized finish for corrosion resistance
• 300 psi liquid and gas pressure rating
• 150 psi steam pressure rating
• Class 150 fitting with threaded end connections
• FM Approved and cULus Listed for code-compliant installations
• Meets ISO 228 and ISO 7/1 threading standards

Compatibility

Designed as an OEM-style replacement or standard component for threaded malleable iron pipe systems sized at 3/4 x 1/2 inches.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, IPC, and IFGC requirements where gas service is involved. Shut off and depressurize the line fully before removing any existing fitting or making new connections. Apply thread sealant or PTFE tape appropriate for the service media before assembly. Do not overtighten threaded connections, as malleable iron fittings can crack under excessive torque.
