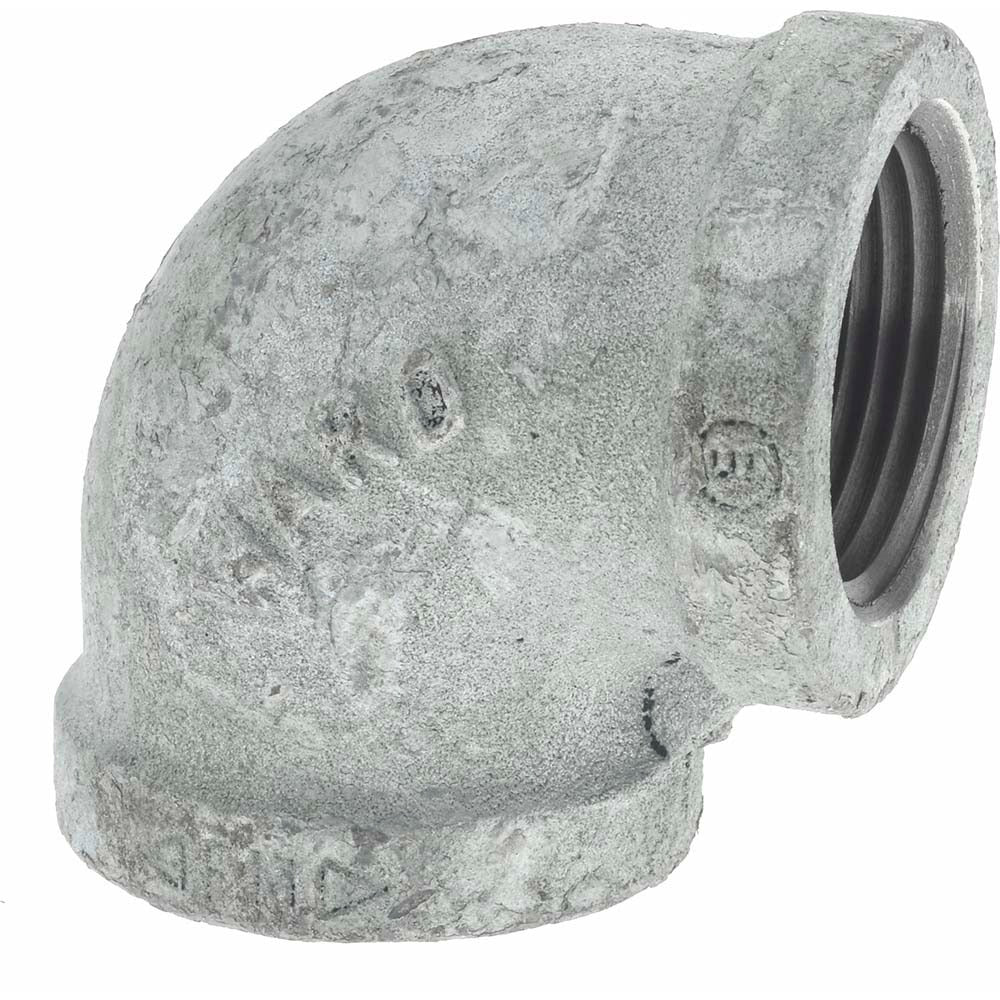

Value Collection G90 25 Malleable Iron 90 Elbow 1 Inch

Product Description

The VALUE COLLECTION G90 25 is a Class 150 malleable iron 90 degree threaded pipe elbow designed for use in plumbing, gas distribution, and piping systems. Rated at 300 psi for liquid and gas service and 150 psi for steam, this 1 inch fitting handles demanding pressure conditions across a wide range of industrial and commercial applications. The galvanized finish provides corrosion resistance in exposed or mildly corrosive environments. Licensed plumbers, pipefitters, and mechanical contractors install this type of fitting in new construction and retrofit piping work.

This elbow is suited for residential and commercial plumbing, gas line distribution, and steam piping installations where a 90 degree directional change is required. The threaded end connection accepts standard pipe threads for straightforward assembly with compatible fittings and pipe. Its malleable iron construction makes it appropriate for higher-stress piping runs compared to cast iron alternatives. Typical applications include water supply, compressed air, natural gas, and low-pressure steam systems.

Key Features

• 300 psi liquid and gas pressure rating for reliable service in demanding piping systems
• 150 psi steam pressure rating suitable for low-pressure steam applications
• Threaded end connections for standard pipe thread assembly
• Galvanized finish provides corrosion resistance in exposed conditions
• Meets FM Approved, ISO 7/1, NSF/ANSI 372, NSF/ANSI 61, and cULus Listed standards
• Class 150 malleable iron construction for durability in high-cycle piping environments

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1 inch threaded pipe systems in plumbing, gas, and steam applications meeting Class 150 malleable iron fitting requirements.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes including the IPC and IFGC. Isolate and depressurize the pipe system and shut off all gas or fluid supply before beginning work. Apply appropriate pipe thread sealant or PTFE tape to male threads before assembly and tighten to manufacturer-standard engagement depth. Do not over-torque threaded connections, as malleable iron fittings can crack under excessive force.
