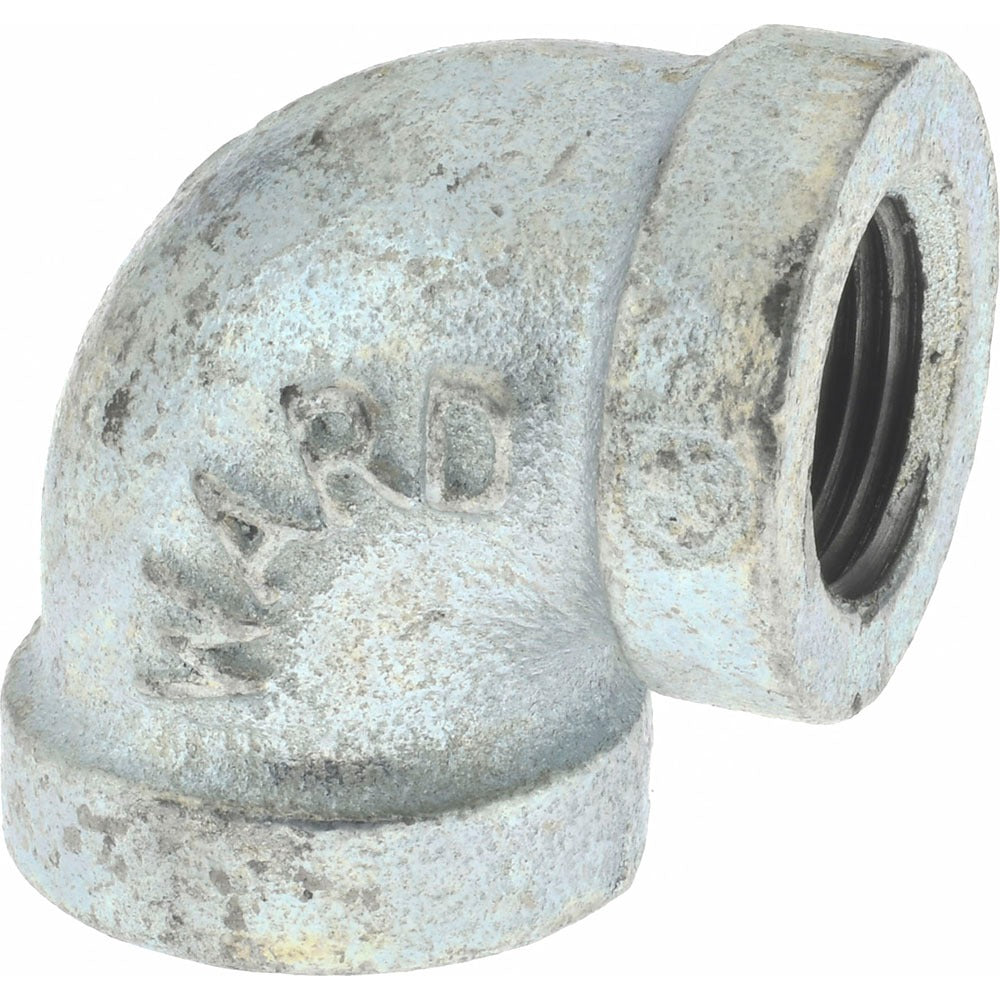

Value Collection G90 10 Malleable Iron 90 Elbow 3/8 in

Product Description

The VALUE COLLECTION G90 10 is a malleable iron 90-degree elbow pipe fitting designed for threaded pipe assemblies in plumbing, gas distribution, and mechanical piping systems. Sized at 3/8 inch, it redirects flow at a right angle and is rated for 300 psi on liquid and gas service and 150 psi on steam service. The galvanized finish provides corrosion resistance in both indoor and exposed environments. This fitting meets Class 150 standards and carries FM, cULus, NSF/ANSI 61, NSF/ANSI 372, and ISO 7/1 certifications, making it suitable for potable water and fuel gas applications. Licensed plumbers and pipefitters are the typical installers.

This elbow is used in residential and light commercial piping systems where a 90-degree directional change is needed in a 3/8-inch threaded line. Common applications include natural gas branch lines, compressed air distribution, water supply rough-in, and steam heating systems operating within the rated pressure limits. The threaded end connection follows standard tapered pipe thread engagement and mates with any compatible 3/8-inch NPT fittings or pipe sections.

Key Features

• 300 psi liquid and gas pressure rating for high-demand service lines
• 150 psi steam pressure rating suitable for low-pressure steam heating systems
• Galvanized finish for corrosion resistance in wet and exposed environments
• Threaded end connections for tool-based installation without welding or soldering
• NSF/ANSI 61 and NSF/ANSI 372 certified for use in potable water systems
• FM Approved and cULus Listed for compliance in fire protection and safety-rated installations

Compatibility

Designed as an OEM-style replacement and standard-use fitting for 3/8-inch threaded pipe assemblies in Class 150 malleable iron piping systems.

Installation Notes

Installation is performed by a licensed plumber or pipefitter. Shut off and depressurize the line completely before disassembling any threaded connection. Apply an approved thread sealant or PTFE tape to the male threads before assembly and tighten to a snug fit using a pipe wrench. For gas service, verify the installation against applicable local codes and IFGC requirements before restoring pressure.
