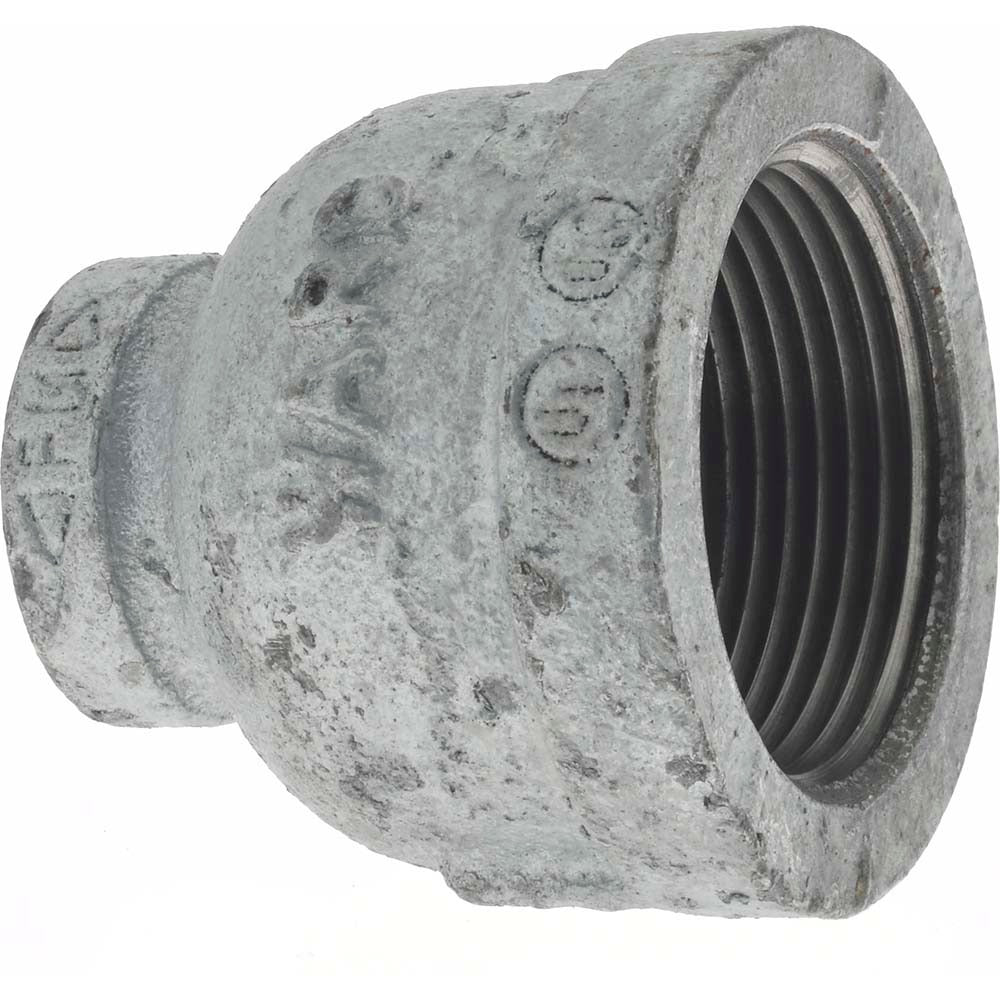

Value Collection G240 32X15 Malleable Iron Reducing Coupling

Product Description

The VALUE COLLECTION G240 32X15 is a malleable iron reducing coupling designed to connect threaded pipe runs of different diameters in plumbing, gas, and industrial piping systems. It steps down from a 1-1/4 inch female thread on one end to a 1/2 inch female thread on the other, allowing inline diameter changes without additional fittings. Rated at 300 psi for liquid and gas service and 150 psi for steam, this Class 150 fitting meets ISO 7/1 threading standards. A galvanized finish provides corrosion resistance for demanding environments. Plumbers, pipefitters, and gas service technicians install this fitting in both new construction and retrofit applications.

This reducing coupling is suited for residential and light commercial piping systems carrying water, gas, air, or steam. Its threaded end connections make it compatible with standard NPT-style malleable iron, steel, and galvanized pipe assemblies. Typical install scenarios include branch line reductions, equipment connections, and service riser transitions where a change in pipe diameter is required within a straight run.

Key Features

• Reduces from 1-1/4 inch to 1/2 inch in a single inline fitting
• Rated 300 psi for liquid and gas service
• Rated 150 psi for steam service
• Class 150 malleable iron construction with galvanized finish
• Threaded end connections per ISO 7/1 standard
• Compact single-piece design eliminates need for bushing and full coupling combination

Compatibility

Designed as an OEM-style replacement or new-install fitting for Class 150 malleable iron threaded pipe systems carrying liquid, gas, or steam.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable codes such as the IPC or IFGC. Shut off and depressurize the line completely before disassembling any pipe joint. Apply an approved thread sealant or PTFE tape to male threads before making up the joint. Do not over-tighten threaded malleable iron fittings, as over-torquing can crack the fitting body.
