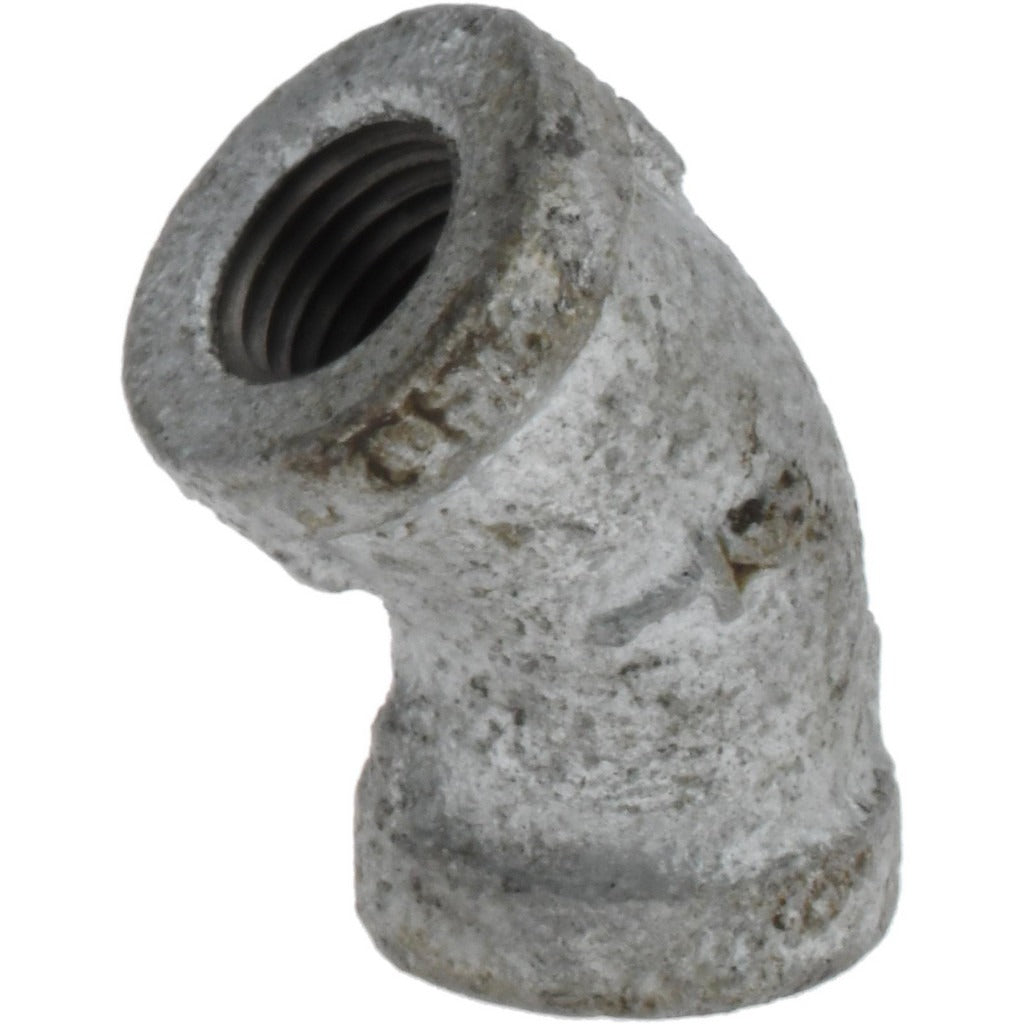

Value Collection G120 8 Malleable Iron 45 Deg Pipe Elbow

Product Description

The VALUE COLLECTION G120 8 is a Class 150 malleable iron 45-degree pipe elbow designed for threaded pipe systems in gas, liquid, and steam service. The fitting accepts 1/4-inch threaded connections and carries a 300 psi pressure rating for liquid and gas service and a 150 psi rating for steam. The galvanized finish provides corrosion resistance in damp or exposed installations. Plumbers, pipefitters, and mechanical contractors use this type of fitting to redirect pipe runs at a 45-degree angle in tight or angled layouts where a full 90-degree turn is not required.

This elbow is suited for residential and light commercial plumbing, gas distribution, and mechanical piping systems where malleable iron fittings are specified. The 1/4-inch size is common in low-volume gas supply lines, compressed air branch lines, and small-bore water piping. The threaded end connection makes installation straightforward with standard pipe wrenches and thread sealant, without the need for welding or soldering equipment.

Key Features

• 45-degree elbow geometry for angled pipe routing without a full 90-degree offset
• 300 psi liquid and gas pressure rating for demanding service conditions
• 150 psi steam pressure rating suitable for low-pressure steam systems
• Galvanized finish for added corrosion resistance in exposed or damp environments
• Threaded end connection compatible with standard NPT pipe
• Meets ISO 7/1 threading standards

Compatibility

Designed as an OEM-style replacement or new-installation fitting for 1/4-inch threaded malleable iron pipe systems rated to Class 150 service.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable local mechanical and plumbing codes. Shut off and depressurize the line completely before removing or installing any threaded fittings. Apply an approved thread sealant or PTFE tape to male threads before assembly, and tighten with a pipe wrench to achieve a leak-free connection. Do not overtighten, as this can crack the fitting body.
