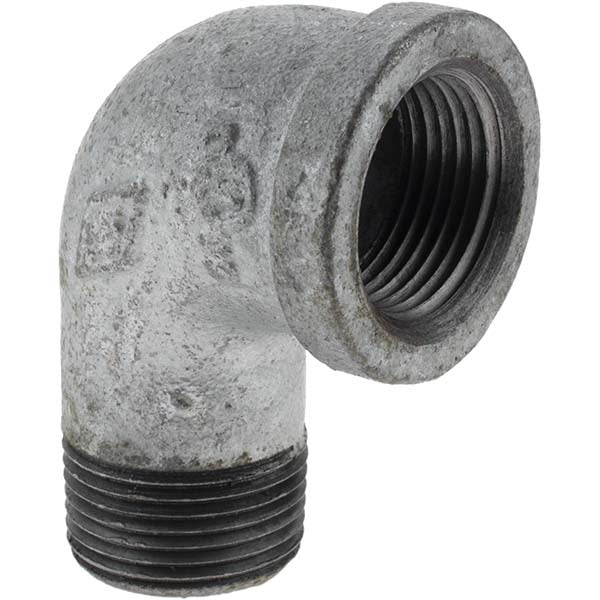

Value Collection G-S9007 Malleable Iron 90 Street Elbow 3/4

Product Description

The VALUE COLLECTION G-S9007 is a 3/4 inch malleable iron 90 degree street elbow designed for threaded pipe systems carrying liquid, gas, or steam. It is rated at 300 psi for liquid and gas service and 150 psi for steam service, meeting Class 150 standards. The galvanized finish provides corrosion resistance for installations in demanding environments. This fitting is a standard component used by licensed plumbers and pipefitters working on gas distribution, water supply, and steam piping systems.

This street elbow is suited for residential and light commercial plumbing and gas piping applications where a 90 degree direction change is required within a threaded malleable iron system. The street configuration means one male-threaded end and one female-threaded end, allowing the fitting to thread directly into another fitting without a nipple. It is commonly installed in close-quarters piping runs where minimizing overall assembly length matters.

Key Features

• 3/4 inch fitting size for standard threaded pipe connections
• 300 psi liquid and gas pressure rating for reliable service under load
• 150 psi steam pressure rating, Class 150 rated
• Malleable iron construction for strength and thread integrity
• Galvanized finish for corrosion resistance in exposed or moist environments
• Street configuration with one male and one female threaded end for compact routing

Compatibility

Designed as a standard Class 150 malleable iron threaded fitting compatible with 3/4 inch NPT threaded pipe and fittings used in gas, liquid, and low-pressure steam piping systems.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes and the International Fuel Gas Code or International Plumbing Code as relevant. Shut off gas or fluid supply and depressurize the line before making any connections. Apply an appropriate thread sealant or PTFE tape to all male threads before assembly. Do not over-tighten threaded malleable iron fittings, as the material can crack under excessive torque.
