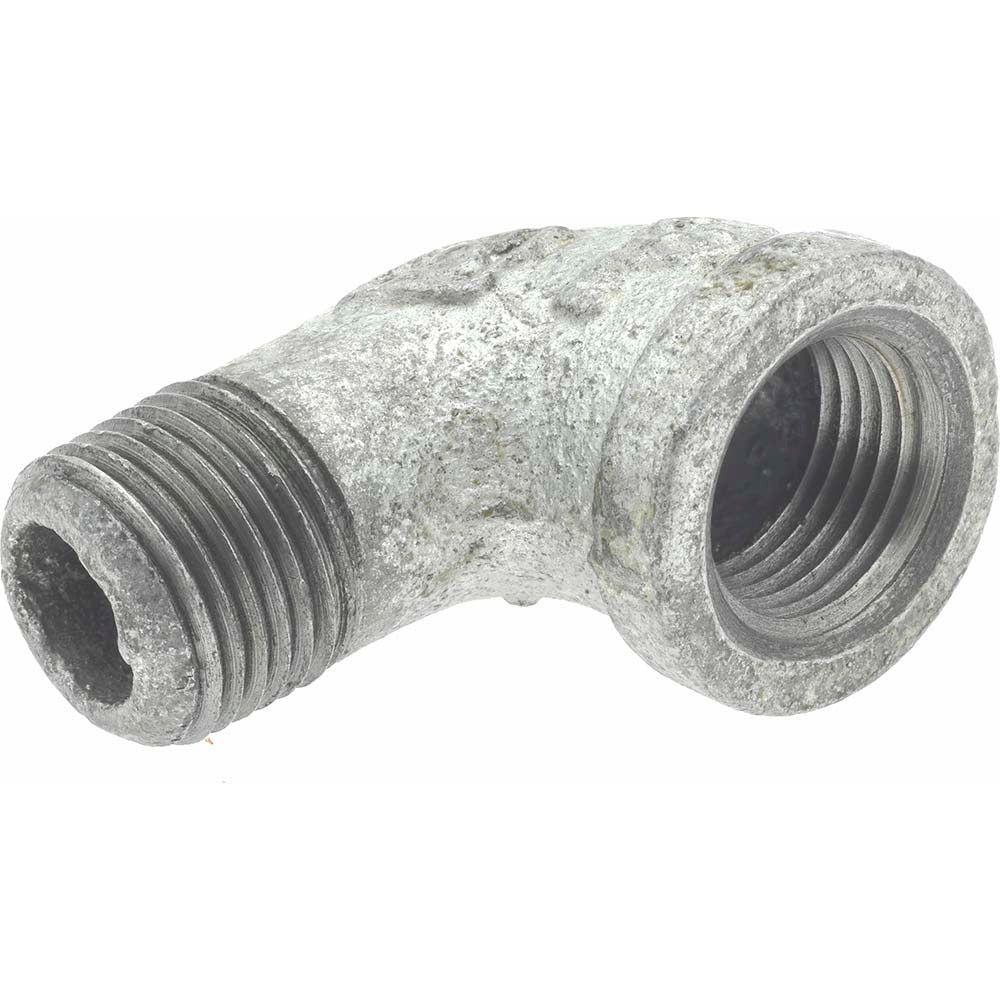

Value Collection G-S9005 Malleable Iron 90 Street Elbow

Product Description

The VALUE COLLECTION G-S9005 is a 1/2 inch malleable iron 90 degree street elbow designed for use in threaded pipe systems carrying liquid, gas, or steam. This Class 150 galvanized fitting is rated for 300 psi with liquid and gas service and 150 psi in steam applications. The street elbow configuration features one male-threaded end and one female-threaded end, allowing a direct connection to a pipe or fitting without requiring a separate nipple. It is commonly installed by plumbers, pipefitters, and gas-line technicians in tight-space routing where a standard elbow would require additional fittings.

This fitting is suited for residential and light commercial piping installations, including natural gas distribution lines, compressed air runs, water supply systems, and low-pressure steam service. The galvanized finish provides added corrosion resistance in exposed or moderately wet environments. At 1/2 inch, this elbow fits standard NPT-threaded piping of the same size and is a common component in mechanical rooms, utility spaces, and under-floor or in-wall gas and water rough-in work.

Key Features

• 300 psi liquid and gas pressure rating for reliable service in demanding installations
• 150 psi steam pressure rating suitable for low-pressure steam systems
• Malleable iron construction provides impact resistance and strength superior to cast iron
• Galvanized finish for enhanced corrosion resistance in exposed applications
• Street elbow design with one male and one female NPT end for compact, nipple-free connections
• Class 150 rating aligns with standard threaded pipe fitting specifications

Compatibility

Designed as an OEM-style replacement or new-installation fitting for standard 1/2 inch NPT threaded pipe systems in liquid, gas, and low-pressure steam service.

Installation Notes

Installation should be performed by a licensed plumber or pipefitter in accordance with applicable local codes, including IPC and IFGC requirements for gas and plumbing systems. Shut off and depressurize the line completely before removing or installing any threaded fittings. Apply an appropriate thread sealant or PTFE tape rated for the service medium before threading the fitting into place. Do not over-tighten, as malleable iron threads can crack under excessive torque.
