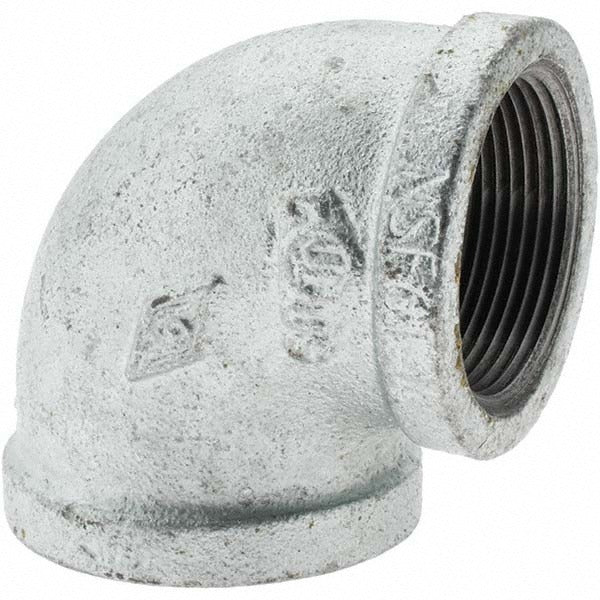

Value Collection G-L9015 Malleable Iron 90 Elbow 1-1/2 in

Product Description

The VALUE COLLECTION G-L9015 is a malleable iron 90-degree elbow fitting designed for joining pipe runs at a right angle in gas, liquid, and steam distribution systems. Sized at 1-1/2 inches, this Class 150 fitting carries a pressure rating of 300 psi for liquid and gas service and 150 psi for steam service. The galvanized finish coating provides corrosion resistance suitable for a range of indoor and outdoor piping environments. Plumbers and pipefitters install this type of fitting in commercial and industrial distribution systems where threaded malleable iron connections are required by code or specification.

This elbow is appropriate for residential and light commercial piping systems using NPT threaded connections. Typical applications include natural gas distribution, compressed air lines, water supply piping, and low-pressure steam systems. The 90-degree angle makes it well suited for directional changes in tight spaces where a sweep or long-radius fitting is not required. Installations follow standard threaded pipe assembly practices with pipe dope or PTFE tape applied to the male threads before makeup.

Key Features

• Malleable iron construction provides durability and resistance to impact compared to cast iron
• 300 psi liquid and gas pressure rating for demanding service conditions
• 150 psi steam pressure rating supports low-pressure steam systems
• Galvanized finish coating improves corrosion resistance
• Class 150 rating consistent with standard threaded pipe fitting specifications
• 1-1/2 inch fitting size for common mid-range pipe diameters

Compatibility

Designed as an OEM-style threaded replacement fitting for use in standard 1-1/2 inch NPT malleable iron pipe systems rated to Class 150 service conditions.

Installation Notes

Installation is typically performed by a licensed plumber or pipefitter following applicable local codes and standards such as the International Plumbing Code or International Fuel Gas Code. Shut off gas or fluid supply and depressurize the line completely before removing or installing any threaded fitting. Apply an approved pipe thread sealant or PTFE tape to all male threads before assembly and tighten to a leak-free makeup without over-torquing. Inspect all connections with an approved leak-detection method before returning the system to service.
