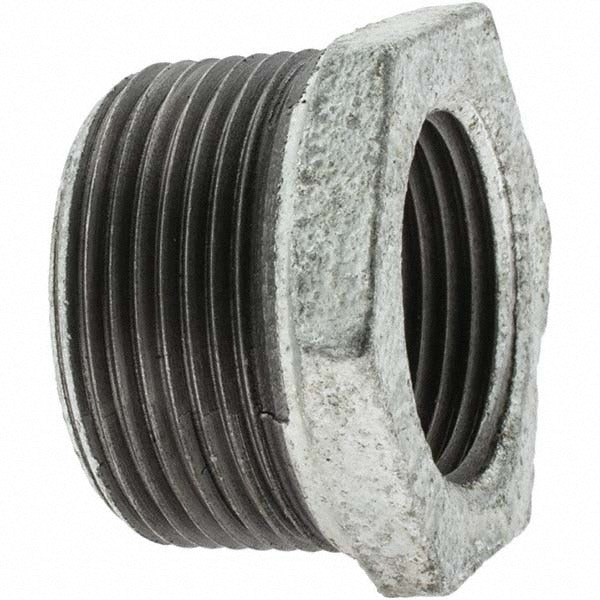

Value Collection G-BUS1210 Malleable Iron Pipe Bushing

Product Description

The VALUE COLLECTION G-BUS1210 is a malleable iron pipe bushing designed to reduce a 1-1/4 inch female pipe thread to a 1 inch male pipe thread. It handles liquid and gas service at up to 300 psi and steam service at up to 150 psi, meeting Class 150 pressure ratings. Malleable iron construction provides the ductility needed to withstand mechanical stress and vibration in both above-ground and buried piping applications. Plumbers, pipefitters, and HVAC technicians install this bushing where a threaded reduction is needed within a pipe assembly without adding excessive length to the run.

This bushing suits residential and commercial plumbing, gas distribution, and HVAC piping systems where a concentric threaded reduction is required. It threads directly into a 1-1/4 inch female fitting or valve body, accepting 1 inch male pipe thread on the outlet side. Typical applications include reducing pipe runs at manifolds, valve bodies, and equipment connections in gas, water, and steam piping systems operating within the rated pressure limits.

Key Features

• 300 psi liquid and gas pressure rating for reliable service in pressurized systems
• 150 psi steam pressure rating suitable for low-pressure steam piping
• Malleable iron construction resists mechanical shock and vibration better than cast iron
• Class 150 fitting for compatibility with standard threaded pipe assemblies
• Concentric bushing design reduces fitting count and keeps assemblies compact

Compatibility

Designed as an OEM-style replacement or standard fitting for threaded malleable iron pipe assemblies using 1-1/4 inch female to 1 inch male NPT connections in Class 150 piping systems.

Installation Notes

Installation is performed by licensed plumbers or pipefitters following applicable IPC and IFGC code requirements for the service type. Thread all connections with an approved pipe thread sealant or PTFE tape rated for the intended service before assembly. De-pressurize and isolate the piping system fully before removing or installing any threaded fitting. Do not exceed the rated pressure limits for the intended service medium.
