Value Collection FWSIS0-50-10LBBX Sae Flat Washer

Product Description

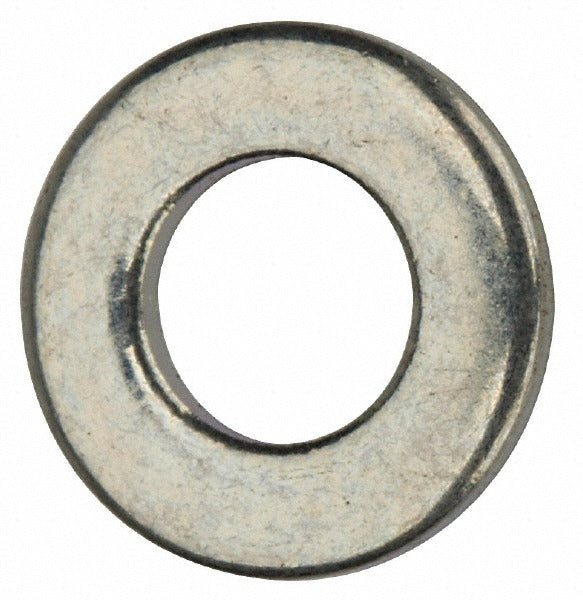

The VALUE COLLECTION FWSIS0-50-10LBBX is a No. 5 screw size SAE flat washer manufactured from Grade 2 steel with a zinc-plated finish. It measures 9/64 inches inner diameter, 9/32 inches outer diameter, and 0.03 inches thick. Designed to distribute load evenly under bolt heads and nuts, this washer is built to ASME B18.21.1 dimensional standards. The zinc plating provides a baseline level of corrosion resistance suitable for general-purpose indoor and light-duty outdoor fastening applications. Plumbers, electricians, HVAC technicians, and general maintenance professionals keep these washers on hand for routine fastener assemblies across a wide range of trade work.

This washer is sized for No. 5 screws and suits residential and light commercial construction, mechanical assemblies, equipment mounting, and panel work where a small-diameter load-spreading washer is needed. The SAE specification means the outer diameter and thickness conform to tighter tolerances than USS-pattern washers of the same screw size, making it the preferred choice when a close OD fit is required by the joint design.

Key Features

• SAE pattern per ASME B18.21.1 for consistent dimensional tolerances
• No. 5 screw size with 9/64 inches inner diameter
• 9/32 inches outer diameter for compact load distribution
• 0.03 inches thickness for low-profile fastener assemblies
• Grade 2 steel construction for reliable general-purpose strength
• Zinc-plated finish for baseline corrosion resistance

Compatibility

Designed for use with No. 5 SAE-pattern screw and bolt assemblies where ASME B18.21.1 dimensional compliance is required.

Installation Notes

Install using standard hand tools; ensure the washer seats flush against the mating surface before tightening the fastener. Power down or de-energize any equipment before introducing fasteners in electrical or control panel applications. Follow applicable codes such as the NEC for electrical assemblies or the IPC for plumbing fixture connections. Zinc-plated washers are not recommended for prolonged exposure to standing water or highly corrosive environments without additional protective measures.
