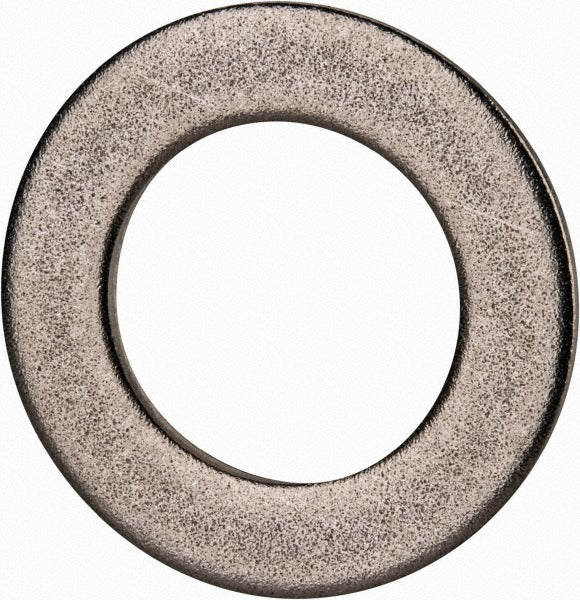

Value Collection FW5X02200-010BX M22 Flat Washer 18-8 Ss

Product Description

The VALUE COLLECTION FW5X02200-010BX is an M22 standard flat washer manufactured from Grade 18-8 stainless steel with a plain finish. It conforms to the DIN 125A fastener standard and is sized at 23mm inside diameter, 39mm outside diameter, and 3mm thick. The 18-8 stainless steel construction provides solid corrosion resistance in wet, outdoor, and chemically exposed environments. This washer distributes load under a bolt head or nut to protect mating surfaces and reduce the risk of fastener pull-through. Mechanics, maintenance technicians, pipefitters, and general tradespeople install these as part of standard bolted connections across a wide range of assemblies.

This flat washer is suited for metric bolted assemblies requiring M22 hardware. Typical applications include structural connections, equipment mounting, pipe flange assemblies, and general mechanical fastening where stainless steel is specified for corrosion resistance. The plain finish makes it appropriate for use in stainless or mixed-metal assemblies where coated or plated washers are not preferred. It is commonly used in both light industrial and commercial construction settings.

Key Features

• Grade 18-8 stainless steel construction for corrosion resistance in wet and outdoor environments
• Conforms to DIN 125A fastener standard for consistent dimensional accuracy
• 23mm inside diameter sized for M22 fasteners
• 39mm outside diameter provides broad load distribution
• 3mm thickness delivers solid bearing surface under bolt head or nut
• Plain finish with no coating — compatible with stainless fastener assemblies

Compatibility

Designed for use with M22 metric fasteners in assemblies requiring DIN 125A standard flat washers. Verify inside diameter, outside diameter, and thickness against application requirements before installation.

Installation Notes

Install using standard hand tools appropriate for the bolt size. Ensure mating surfaces are clean and free of debris before seating the washer. When working in stainless fastener assemblies, avoid mixing dissimilar metals where galvanic corrosion is a concern. Follow applicable mechanical or structural codes for torque sequencing on critical bolted connections.
