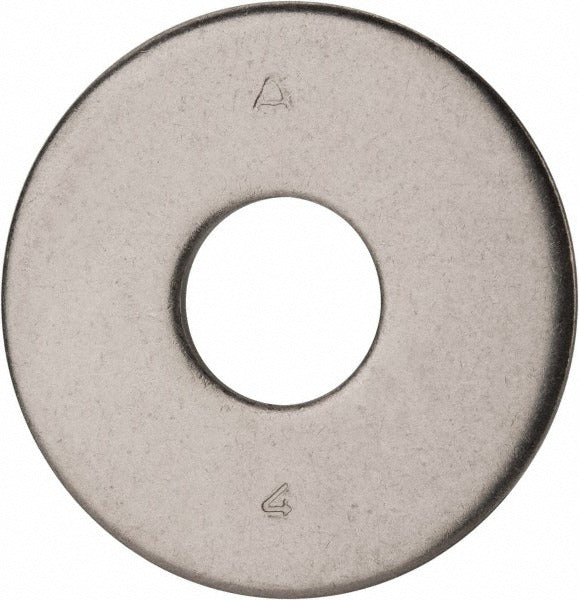

Value Collection FW1XX01600-050BX M16 Fender Washer 316 Ss

Product Description

The VALUE COLLECTION FW1XX01600-050BX is an M16 fender flat washer manufactured from Grade 316 stainless steel with a plain finish. Fender washers feature a larger-than-standard outside diameter relative to the inside diameter, distributing load over a wider surface area and reducing pull-through in softer or thinner materials. This washer measures 17 mm inside diameter by 50 mm outside diameter and conforms to DIN 9021 fastener standards. It is a metric-system component suited for marine, industrial, and outdoor structural assemblies where corrosion resistance is a priority.

Grade 316 stainless steel provides elevated resistance to chlorides and saltwater environments compared to Grade 304, making this washer a common choice in coastal construction, marine hardware, food-processing equipment, chemical handling installations, and general outdoor fastening applications. Plumbers, pipefitters, marine contractors, and millwrights working with M16 metric fastener systems will find this washer appropriate for bolted flange connections, panel mounting, and structural anchoring tasks.

Key Features

• Grade 316 stainless steel construction for superior corrosion and chloride resistance
• Large OD fender design at 50 mm outside diameter distributes clamp load over a wide area
• 17 mm inside diameter fits M16 metric fasteners
• Conforms to DIN 9021 fastener standard for consistent dimensional tolerances
• Plain finish with no additional coating or plating
• Metric measurement system component

Compatibility

Designed for use with M16 metric fasteners in applications requiring a large-diameter fender washer per DIN 9021 dimensional standards.

Installation Notes

Install using hand tools appropriate to the M16 bolt or screw being used. Ensure mating surfaces are clean and free of debris before seating the washer to maintain proper load distribution. When used in marine or corrosive environments, pair with fasteners of compatible material grade to avoid galvanic corrosion. Follow applicable structural or mechanical codes for the specific assembly type.
