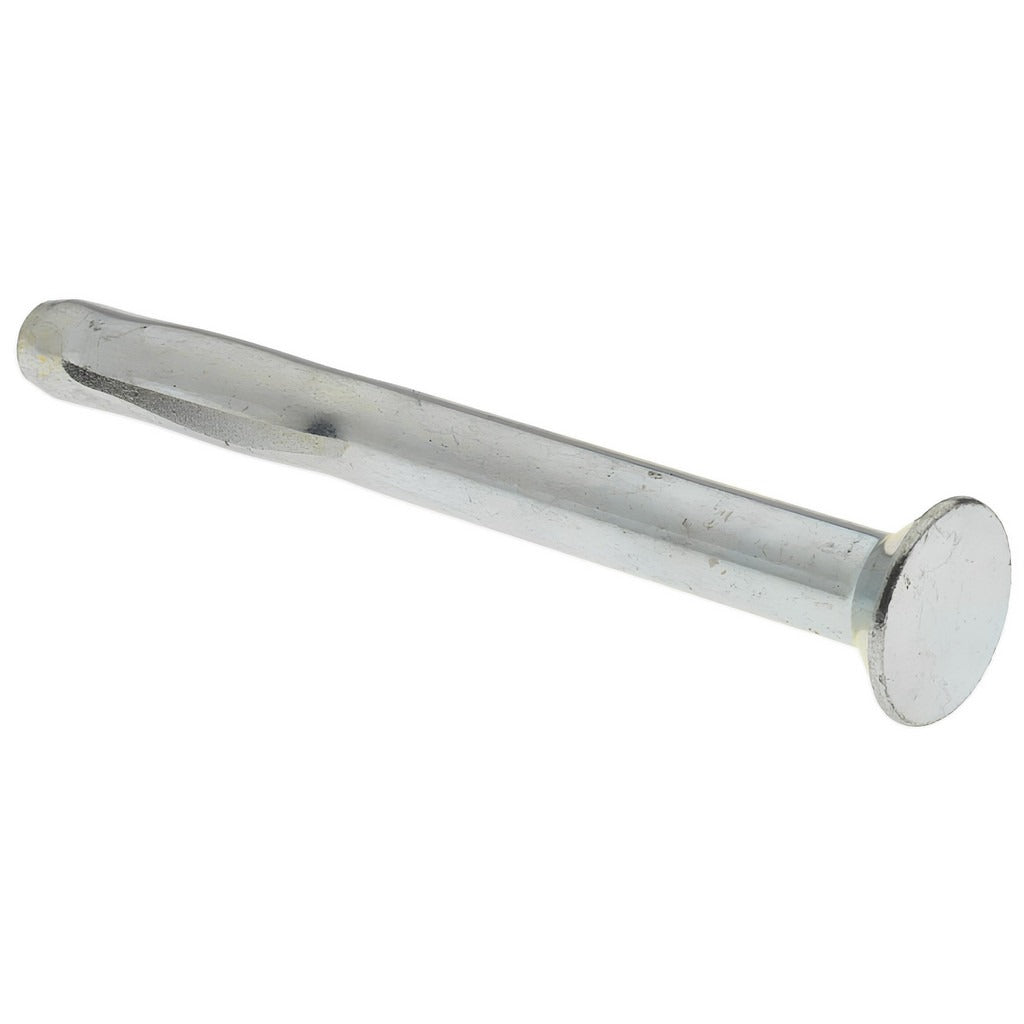

Value Collection FSD14250 Split Drive Concrete Anchor

Product Description

The VALUE COLLECTION FSD14250 is a split drive concrete anchor designed for fast, tool-free installation into concrete and masonry substrates. The anchor is manufactured from steel with a zinc-plated finish for corrosion resistance in typical interior and sheltered exterior environments. At 2.5 inches overall length with a 1/4-inch diameter and flat head profile, this anchor is suited for securing fixtures, conduit straps, brackets, and similar hardware directly to concrete surfaces. A minimum embedment of 1.125 inches is required for proper holding strength. Installation is accomplished by driving the anchor into a pre-drilled hole, eliminating the need for nuts or setting tools beyond a hammer or hammer drill.

This split drive anchor is used in residential and light commercial construction and maintenance applications where a permanent, flush-mount fastening point is needed in poured concrete, concrete block, or similar hard masonry. Typical applications include electrical conduit mounting, mechanical equipment base attachment, and general structural hardware installation. The flat head sits flush with the substrate surface after seating, making it well suited for applications where a raised fastener head would interfere with overlying components or finishes.

Key Features

• Steel construction with zinc-plated finish for corrosion resistance
• Flat head profile seats flush with the substrate surface
• 2.5-inch overall length with 1.125-inch minimum embedment depth
• 1/4-inch diameter fits standard pre-drilled concrete anchor holes
• Split drive design installs with a hammer — no nut or setting tool required

Compatibility

Designed as a standard split drive concrete anchor for use in poured concrete and concrete masonry unit (CMU) substrates where a 1/4-inch diameter flat head anchor is specified.

Installation Notes

Installation is performed by drilling a properly sized hole to the required depth, clearing debris from the hole, and driving the anchor flush using a hammer or pneumatic hammer. Follow applicable building codes and the anchor manufacturer load tables for shear and tensile loading requirements before specifying embedment depth. Do not install in cracked, spalled, or unsound concrete. Minimum edge and spacing distances should be observed per job specifications to prevent substrate failure.
