Value Collection FRFNY2-180 Female Wire Disconnect 16-14 Awg

Product Description

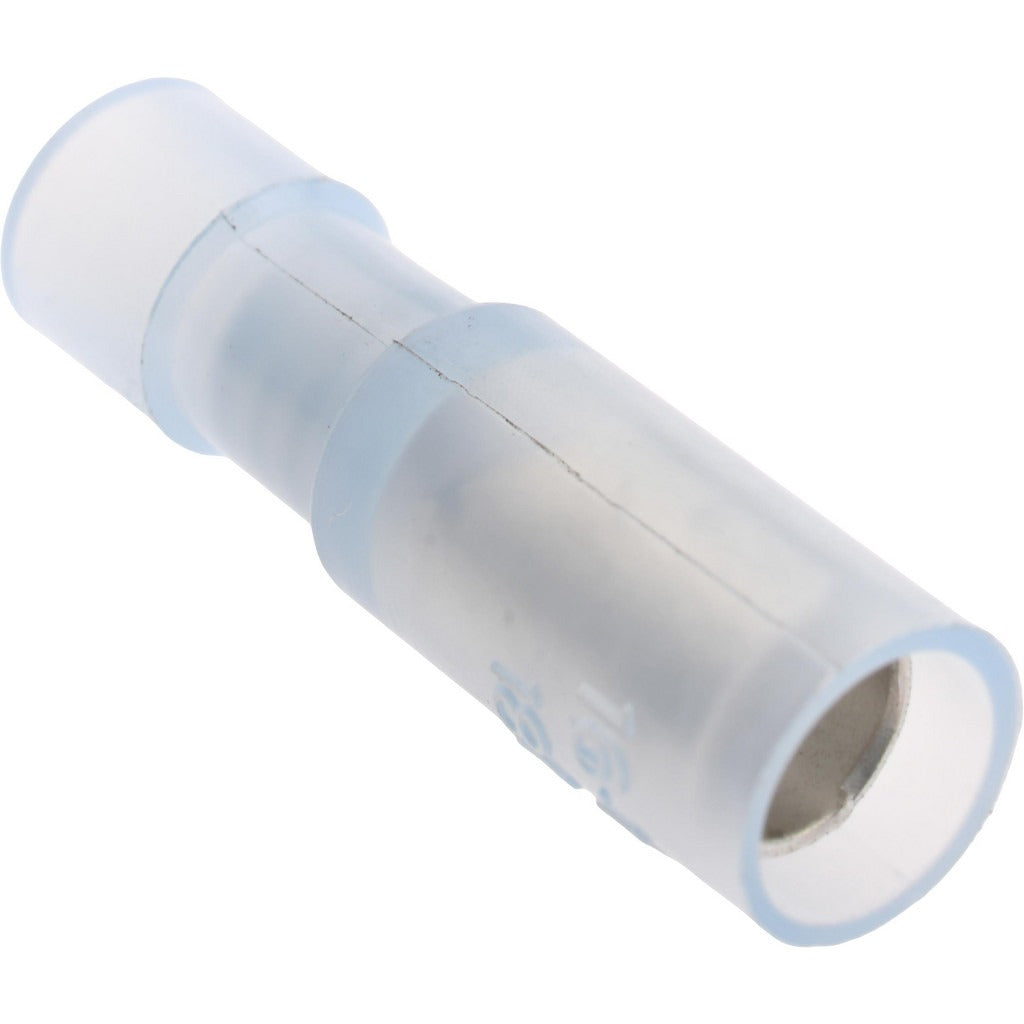

The VALUE COLLECTION FRFNY2-180 is a fully insulated female wire disconnect terminal designed for crimp-style electrical connections. The connector accepts 16-14 AWG wire (1.50 to 2.50 sq mm) and features a 0.173 inch (4.40 mm) tab width sized for standard quick-disconnect applications. The brass contact provides reliable conductivity, while the blue nylon insulation sleeve offers full coverage after crimping. This terminal is commonly installed by electricians, HVAC technicians, and control wiring specialists during panel wiring, harness assembly, and equipment servicing where tool-free disconnect capability is required.

This female disconnect is suited for residential and light commercial electrical and HVAC control wiring applications. It is used wherever a serviceable, insulated crimp connection is needed on 16-14 AWG conductors, including motor wiring, thermostat and low-voltage control circuits, appliance harnesses, and equipment control panels. The blue color coding quickly identifies the correct wire gauge range during installation and inspection.

Key Features

• Fully insulated nylon sleeve in blue for 16-14 AWG wire gauge identification
• 0.173 inch (4.40 mm) tab width fits standard quick-disconnect receptacles
• Brass contact material for reliable conductivity and corrosion resistance
• Crimp connection type for fast, consistent termination without soldering
• RoHS compliant construction

Compatibility

Designed for use with 16-14 AWG (1.50 to 2.50 sq mm) conductors and standard 0.173 inch tab width male quick-disconnect terminals in residential and commercial electrical, HVAC, and appliance wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with applicable NEC requirements. Always de-energize the circuit before making or breaking terminal connections. Use a proper ratcheting crimp tool sized for insulated 16-14 AWG terminals to ensure a secure, gas-tight crimp. Inspect the insulation sleeve after crimping to confirm full coverage of the conductor barrel.
