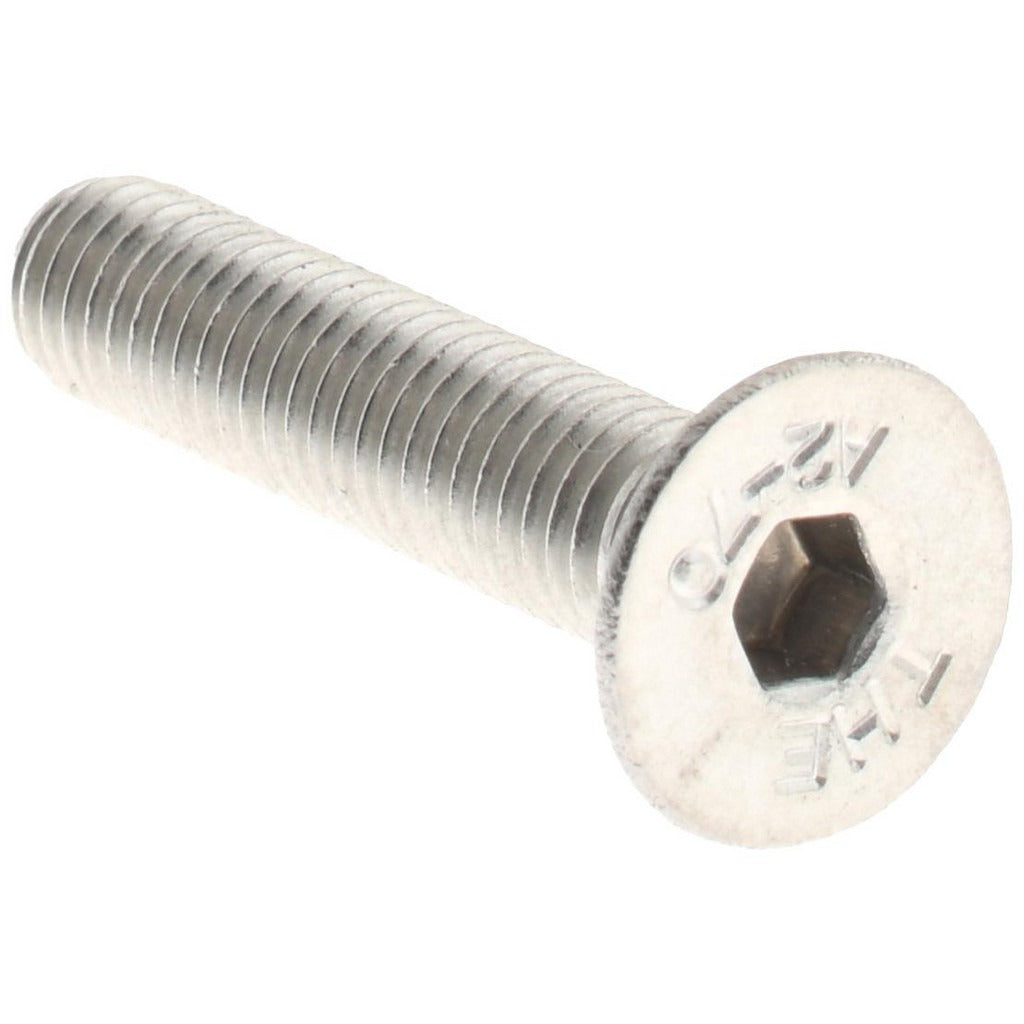

Value Collection FHS1X0525-050BX M5x0.8 Flat Socket Cap Screw

Product Description

The VALUE COLLECTION FHS1X0525-050BX is a metric flat socket cap screw designed for applications requiring a low-profile, flush-mount fastener with a hex socket drive. Manufactured from 18-8 austenitic Grade A2 stainless steel, this screw delivers solid corrosion resistance in wet, marine, and chemically exposed environments. The M5x0.8 thread profile and 25 mm overall length make it suitable for medium-duty assemblies where a countersunk, 90-degree flat head is required. The 3.00 mm hex socket drive allows precise torque application with standard hex keys or Allen-style drivers. This fastener is partially threaded and conforms to DIN 7991 standards.

This flat socket cap screw is used across a wide range of trade and industrial applications including HVAC equipment assembly, electrical enclosure fabrication, plumbing fixture mounting, pool equipment installation, and general mechanical assembly. The flush-seating 90-degree flat head is well suited for panels, brackets, and housings where protruding fastener heads would interfere with mating surfaces or clearances. Minimum order quantity is 50 pieces per order.

Key Features

• 18-8 Austenitic Grade A2 stainless steel construction for corrosion resistance in wet and exposed environments
• 90-degree flat head profile seats flush with the mating surface, eliminating protrusion
• 3.00 mm hex socket drive for precise torque application with standard hex keys
• M5x0.8 metric thread, 25 mm overall length, partially threaded shank
• Conforms to DIN 7991 fastener standard
• Sold in multiples of 50 pieces

Compatibility

Designed as a DIN 7991-compliant metric flat socket cap screw suitable for M5x0.8 threaded applications in equipment assemblies, panels, brackets, and enclosures requiring a countersunk hex socket fastener.

Installation Notes

Installation requires a 3.00 mm hex key or Allen driver rated for the torque requirements of the assembly. Confirm the mating material is drilled and countersunk to the correct 90-degree angle before driving the fastener. Do not over-torque stainless steel fasteners, as galling can occur; use appropriate thread lubricant when required. Follow all applicable mechanical codes and equipment manufacturer specifications for fastener torque and installation procedure.
