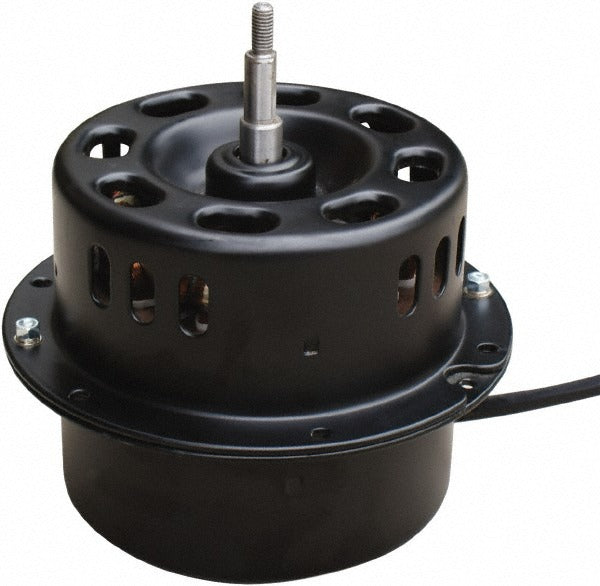

Value Collection FE105D5-M Psc Ac Motor 1 Hp 120V

Product Description

The VALUE COLLECTION FE105D5-M is a permanent split capacitor (PSC) AC motor designed for HVAC applications requiring reliable, continuous-duty airflow performance. Rated at 1 horsepower and 120 volts AC, it operates at 1600 nameplate RPM with a full load amperage of 6 amps. The open enclosure design allows for passive cooling, making it suited to conditioned or sheltered equipment environments. It includes an integrated 40 microfarad (MFD) run capacitor specification, two-speed operation, and Class E insulation. Thermal protection is automatic. The steel frame construction provides structural rigidity in demanding mechanical environments. Licensed HVAC technicians are the primary installers.

This motor is intended for HVAC system applications including blower assemblies and air handler units where a PSC-type motor is specified. The ear screws mount style allows for direct bracket or chassis attachment in residential and light commercial equipment. With a 60 Hz frequency rating and two-speed capability, it supports variable airflow configurations common in multi-stage or two-speed blower setups. Verify existing motor specifications, mounting configuration, and run capacitor rating before installation.

Key Features

• 1 HP output at 1600 nameplate RPM for consistent blower performance
• 120V AC, 60 Hz single-phase input — compatible with standard residential supply voltage
• Two-speed operation supports variable airflow configurations
• 40 MFD run capacitor specification — confirm matching capacitor is installed
• Automatic thermal protection guards against overload and overheating
• Class E insulation with steel frame and ball bearing construction

Compatibility

Designed as an OEM-style replacement PSC motor for residential and light commercial HVAC blower assemblies requiring a 1 HP, 120V, 1600 RPM, two-speed, ear screws mount configuration. Confirm all nameplate specifications match the existing motor before installation.

Installation Notes

Installation should be performed by a licensed HVAC technician. Disconnect and lock out all electrical power to the unit before removing the existing motor or handling any wiring. Verify that the replacement run capacitor matches the 40 MFD rating specified for this motor — using a mismatched capacitor can damage the motor or cause failure to start. Ensure the mounting ears align with the existing bracket and that the shaft rotation direction matches the blower wheel requirement before energizing.
