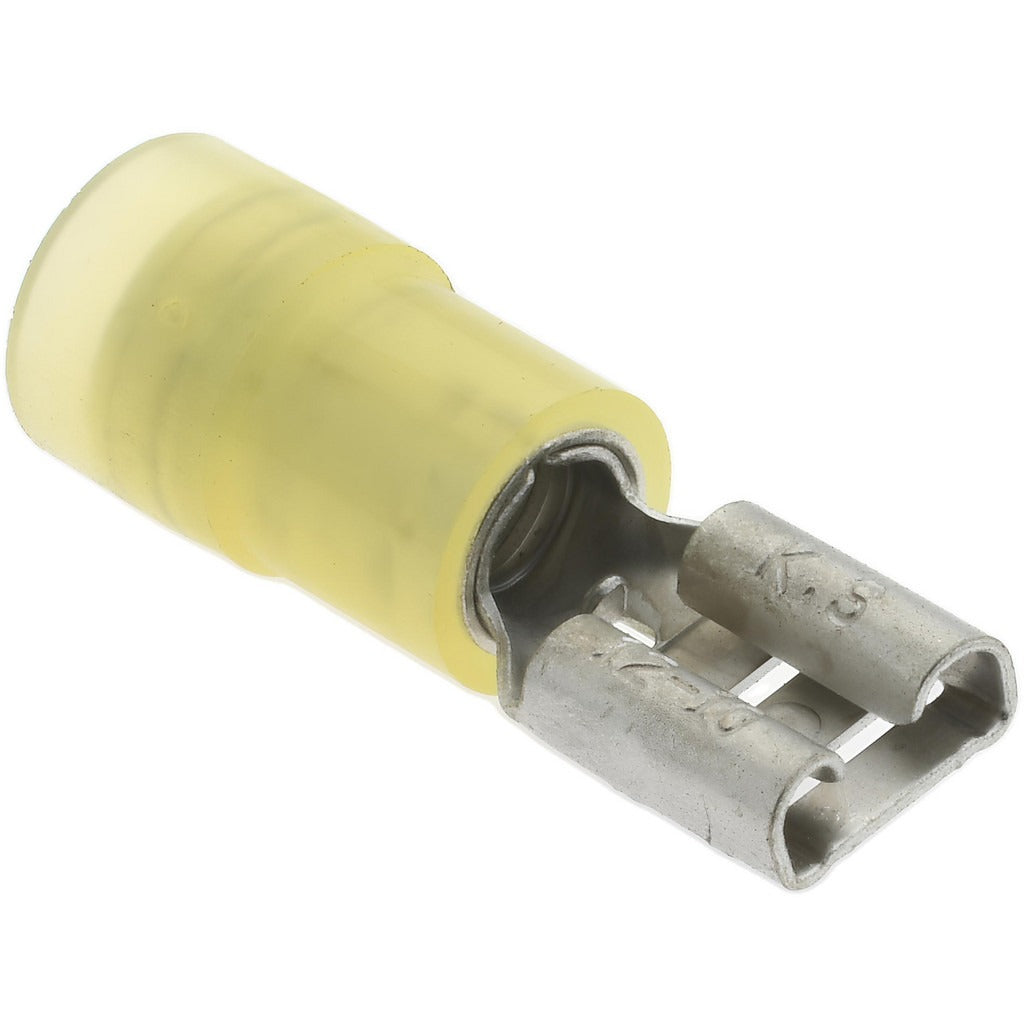

Value Collection FDNYD5-250 Female Wire Disconnect 12-10 Awg

Product Description

The VALUE COLLECTION FDNYD5-250 is a female wire disconnect terminal designed for reliable quick-connect and quick-disconnect wiring applications. The connector uses a double crimp connection method and accepts 12-10 AWG wire, corresponding to 4.00 to 6.00 square millimeters. The partially insulated nylon sleeve is yellow for easy identification during installation or inspection. The brass contact provides solid conductivity, and the 1/4 inch tab width is a widely used standard size across residential and commercial electrical and control wiring. This type of terminal is installed by electricians, HVAC technicians, and equipment service technicians working on control circuits, appliance wiring, and light commercial equipment.

This female disconnect terminal is suited for use in residential and light commercial applications where serviceable, tool-free connections are required. Typical scenarios include HVAC control panel wiring, appliance harness assembly, motor terminal connections, and general electrical panel or equipment wiring. The yellow insulation color indicates compatibility with 12-10 AWG wire per standard color-coding conventions used across the trade. These terminals are sold individually but require a minimum order quantity of 50 units.

Key Features

• Double crimp connection for secure mechanical and electrical termination
• Accepts 12-10 AWG wire (4.00 to 6.00 square millimeters)
• Brass contact material for reliable conductivity
• Partially insulated nylon sleeve in yellow for AWG range identification
• 1/4 inch tab width fits standard male disconnect blades
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed as a standard replacement or new-installation female disconnect terminal for 12-10 AWG wiring applications requiring a 1/4 inch tab width double crimp connection.

Installation Notes

A licensed electrician or qualified technician should de-energize all circuits before installing or replacing wire disconnect terminals. Use a proper ratcheting crimping tool sized for the terminal and wire gauge to achieve a double crimp that secures both the wire conductor and insulation. Inspect the crimped terminal for secure seating before reconnecting power. Follow applicable NEC requirements for wire gauge, terminal rating, and connection integrity in the specific application.
