Value Collection FDNI5-250 Female Wire Disconnect 12-10 Awg

Product Description

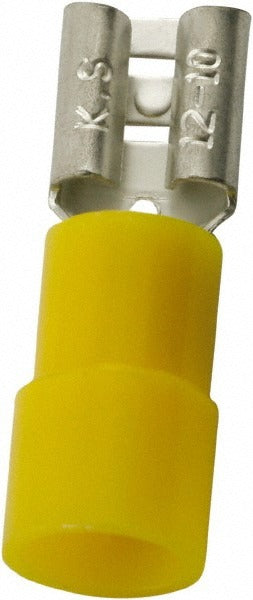

The VALUE COLLECTION FDNI5-250 is a female crimp-style wire disconnect terminal rated for 12-10 AWG conductors. The terminal features a partially insulated polycarbonate sleeve in yellow, making it easy to identify during installation and inspection. The 1/4 inch tab width accepts standard male quick-disconnect tabs common in control wiring, appliance wiring, and low-voltage panel connections. The contact is brass for reliable conductivity and corrosion resistance. Electricians and HVAC technicians install this type of terminal when building or repairing wiring harnesses, control circuits, and panel connections that require a removable, tool-free disconnect point.

This terminal is suited for residential and light commercial electrical and HVAC applications where 12 or 10 AWG wire is used. Typical uses include connecting wires to component terminals on motors, control boards, transformers, and other equipment where a spade-style quick-disconnect interface is specified. The yellow insulation color indicates compatibility with 12-10 AWG wire per standard color-coding conventions. Sold individually with a minimum order quantity of 50 units.

Key Features

• Crimp connection type for secure, permanent wire termination
• Rated for 12-10 AWG wire (4.00 to 6.00 sq mm)
• 1/4 inch (6.35 mm) tab width fits standard quick-disconnect male tabs
• Brass contact material for conductivity and corrosion resistance
• Partially insulated yellow polycarbonate sleeve for AWG identification
• cUL Listed, UL Listed, and RoHS Compliant

Compatibility

Designed for use with 12-10 AWG wire and standard 1/4 inch male quick-disconnect tab terminals found in residential and commercial electrical, HVAC, and appliance wiring applications.

Installation Notes

Installation should be performed by a qualified electrician or HVAC technician in accordance with NEC requirements. De-energize the circuit completely before terminating or removing any disconnect terminal. Use a calibrated wire crimping tool sized for the terminal to ensure a secure mechanical and electrical connection. Do not solder over a crimped terminal or use the terminal on wire gauges outside the 12-10 AWG rating.
