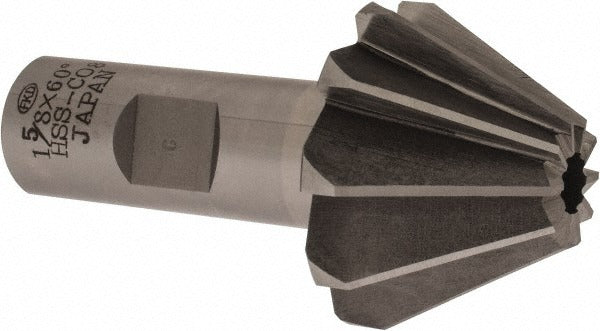

Value Collection FAC1360CO Cobalt Face Angle Cutter 60 Degree

Product Description

The VALUE COLLECTION FAC1360CO is a cobalt face angle cutter designed for precision chamfering and countersinking operations in metalworking applications. The cutter features a 60-degree included angle and is manufactured from cobalt high-speed steel, which provides increased heat resistance and wear performance compared to standard HSS tooling. With a large cutting diameter of 1.625 inches and a small diameter of 0.625 inches, this cutter delivers a 1.0625-inch width of cut. It is suited for use by machinists, tool and die workers, and maintenance technicians running manual or CNC milling equipment.

This face angle cutter is used in machining environments where accurate chamfers, valve seat angles, or angled face profiles are required on ferrous and non-ferrous workpieces. The Weldon flat on the 0.75-inch shank provides positive drive engagement and prevents slipping under load. At 3.0625 inches overall length, it fits standard milling machine and machining center spindles with appropriate toolholders. It is appropriate for job shops, toolrooms, and production environments requiring consistent angular face geometry.

Key Features

• Cobalt construction provides elevated heat and wear resistance over standard HSS cutters
• 60-degree included angle for consistent chamfer and face angle geometry
• 1.625-inch large diameter with 1.0625-inch width of cut for broad material engagement
• 0.75-inch shank diameter with Weldon flat for positive, slip-resistant drive
• Uncoated finish suitable for use with cutting fluids across a range of workpiece materials
• 3.0625-inch overall length fits standard milling toolholders

Compatibility

Designed for use in milling machines and machining centers accepting a 0.75-inch shank with Weldon flat toolholders. Compatible with side-lock end mill holders and similar arbor-style tooling systems that accommodate straight-shank cutters.

Installation Notes

Installation should be performed by a qualified machinist. Secure the cutter in a side-lock or Weldon-flat toolholder, ensuring the flat on the shank is fully engaged with the setscrew before operation. Verify spindle speed and feed rate are appropriate for cobalt tooling and the specific workpiece material before cutting. Inspect the cutter and toolholder for runout before use to maintain angular accuracy.
