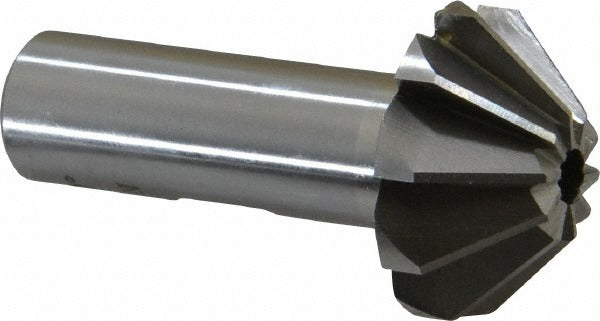

Value Collection FAC1090HS Face Angle Cutter 90 Degree Hss

Product Description

The VALUE COLLECTION FAC1090HS is a high speed steel face angle cutter designed for precision chamfering and countersinking operations on metal workpieces. It features a 90-degree included angle and an uncoated high speed steel construction that provides reliable cutting performance across a range of ferrous and non-ferrous materials. With a large cutting diameter of 1-1/4 inches and a small diameter of 1/2 inch, this cutter removes material cleanly at the specified angle. The 17/32-inch width of cut and 2-13/32-inch overall length make it well suited for use in drill presses, milling machines, and CNC machining centers. Machinists and toolroom technicians are the primary installers and users of this tooling.

This face angle cutter is used in metalworking applications where a consistent 90-degree chamfer or countersink profile is required. Typical scenarios include deburring bolt holes, preparing mating surfaces, and producing countersunk recesses for fastener seating. The 5/8-inch shank diameter with a Weldon flat ensures positive drive and minimizes slippage during cutting operations. It is appropriate for both job shop and production environments handling light to medium-duty machining tasks on steel, aluminum, and similar materials.

Key Features

• 90-degree included angle for standard chamfering and countersinking work
• High speed steel construction provides durability across common metalworking materials
• Uncoated finish suitable for general-purpose machining applications
• Weldon flat on 5/8-inch shank prevents rotational slippage in tool holders
• 17/32-inch width of cut for controlled material removal at the cutting face
• 2-13/32-inch overall length compatible with standard toolholder setups

Compatibility

Designed for use in standard milling machine and drill press toolholders accepting a 5/8-inch shank with Weldon flat drive. No specific machine model compatibility was provided by the manufacturer for this part number.

Installation Notes

This cutter is installed and operated by qualified machinists or toolroom technicians. Before mounting, ensure the spindle is fully stopped and the machine is powered down or locked out per applicable OSHA lockout/tagout procedures. Secure the Weldon flat shank firmly in a compatible end mill holder using the set screw against the flat to prevent axial pullout. Verify proper speed and feed settings for the workpiece material before beginning the cut.
