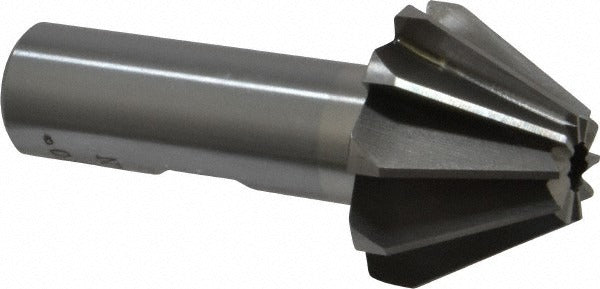

Value Collection FAC1060HS Hss Face Angle Cutter 1-1/4 in 60 Deg

Product Description

The VALUE COLLECTION FAC1060HS is a high speed steel face angle cutter designed for precision angle and chamfer cutting in metalworking applications. It features a 60-degree included angle, a 1-1/4 inch large diameter, and a 1/2 inch small diameter, making it well suited for forming countersinks, bevels, and angled seats on metal workpieces. The 25/32 inch width of cut provides a practical cutting envelope for typical milling and manual machining tasks. The uncoated high speed steel construction offers reliable performance across a range of ferrous and non-ferrous materials. This cutter is installed by machinists and toolroom technicians in manual mill and CNC milling setups.

This face angle cutter is used in metalworking shops for cutting angled profiles, chamfers, and valve seat-style forms in steel, aluminum, and similar metals. The 5/8 inch shank diameter and Weldon flat design allow secure tool holding in standard end mill holders, reducing the risk of tool pullout under cutting loads. With an overall length of 2-21/32 inches, it fits comfortably in standard vertical milling machine spindles. Typical applications include production machining, toolroom work, and maintenance shops where accurate angle geometry is required.

Key Features

• 60-degree included angle for consistent chamfer and bevel geometry
• High speed steel construction for durability across common workpiece materials
• Uncoated finish suitable for general-purpose machining without special coolant requirements
• 5/8 inch shank with Weldon flat for positive retention in standard end mill holders
• 1-1/4 inch large diameter and 25/32 inch width of cut for practical cutting range
• 2-21/32 inch overall length for compatibility with standard milling machine setups

Compatibility

Designed as a standard replacement or direct-use face angle cutter for milling machines equipped with 5/8 inch end mill holders that accept Weldon flat shanks.

Installation Notes

Installation is performed by a machinist or toolroom technician. Power down and lock out the milling machine spindle before mounting or removing the cutter. Secure the Weldon flat setscrew firmly in the end mill holder to prevent axial movement during cutting. Inspect the cutter edge for chips or wear before use and follow applicable shop safety procedures for rotating cutting tools.
