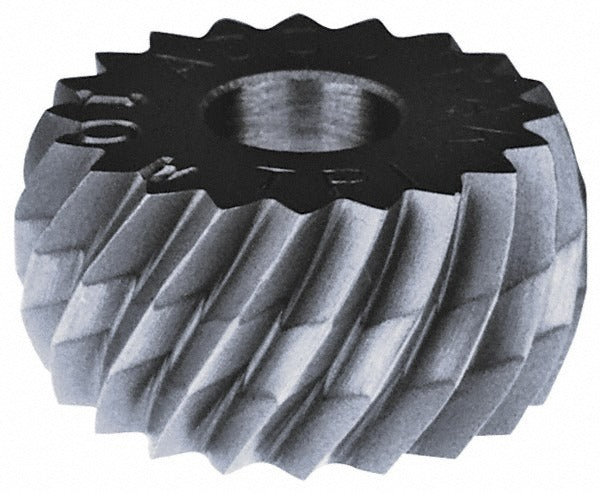

Value Collection EPRV216 Convex Knurl Wheel 16 Tpi Cobalt

Product Description

The VALUE COLLECTION EPRV216 is a convex knurl wheel designed for use in knurling toolholders on manual and CNC lathes. It produces a right-hand diagonal knurl pattern on workpieces, forming a raised textured surface used for grip enhancement, press-fit retention, or decorative finishing. The wheel is machined from cobalt and coated with titanium nitride for extended wear resistance. At 0.5 inches in diameter with a 16 TPI circular pitch and a 90-degree included tooth angle, it is sized for fine-to-medium knurl patterns on small-diameter stock. The 30-degree helix angle drives the diagonal pattern geometry. Machinists and toolroom technicians are the primary users.

This knurl wheel is suited for light to medium production turning operations where a diagonal right-hand convex knurl is required. It fits standard EPV-series knurling tool bodies that accept a 3/16-inch hole diameter and a 3/16-inch face width wheel. Typical applications include knurling grip surfaces on handles, fasteners, pins, and small mechanical components in job shop and production environments. The convex profile helps the wheel self-center on round stock and reduces edge loading during the forming pass.

Key Features

• Convex knurl profile self-centers on cylindrical workpieces and reduces edge pressure
• Right-hand diagonal tooth pattern at 16 TPI circular pitch for medium-texture knurling
• Cobalt construction with titanium nitride finish for improved hardness and wear life
• 90-degree included tooth angle and 30-degree helix angle for consistent pattern formation
• 3/16-inch hole diameter fits EPV-series knurling toolholders

Compatibility

Designed for use with EPV-series knurling tool bodies accepting a 0.5-inch diameter wheel with a 3/16-inch hole and 3/16-inch face width.

Installation Notes

Installation is performed by machinists during toolholder setup on a lathe. Ensure the lathe spindle is fully stopped and all motion has ceased before mounting or removing knurl wheels. The wheel must be seated squarely in the toolholder and the retaining hardware torqued to the toolholder specification. Inspect the wheel for chipped or worn teeth before each use, as damaged teeth will transfer defects directly to the finished knurl pattern.
