Value Collection E0508-ORANGE Wire Ferrule 20 Awg 100 Pack

Product Description

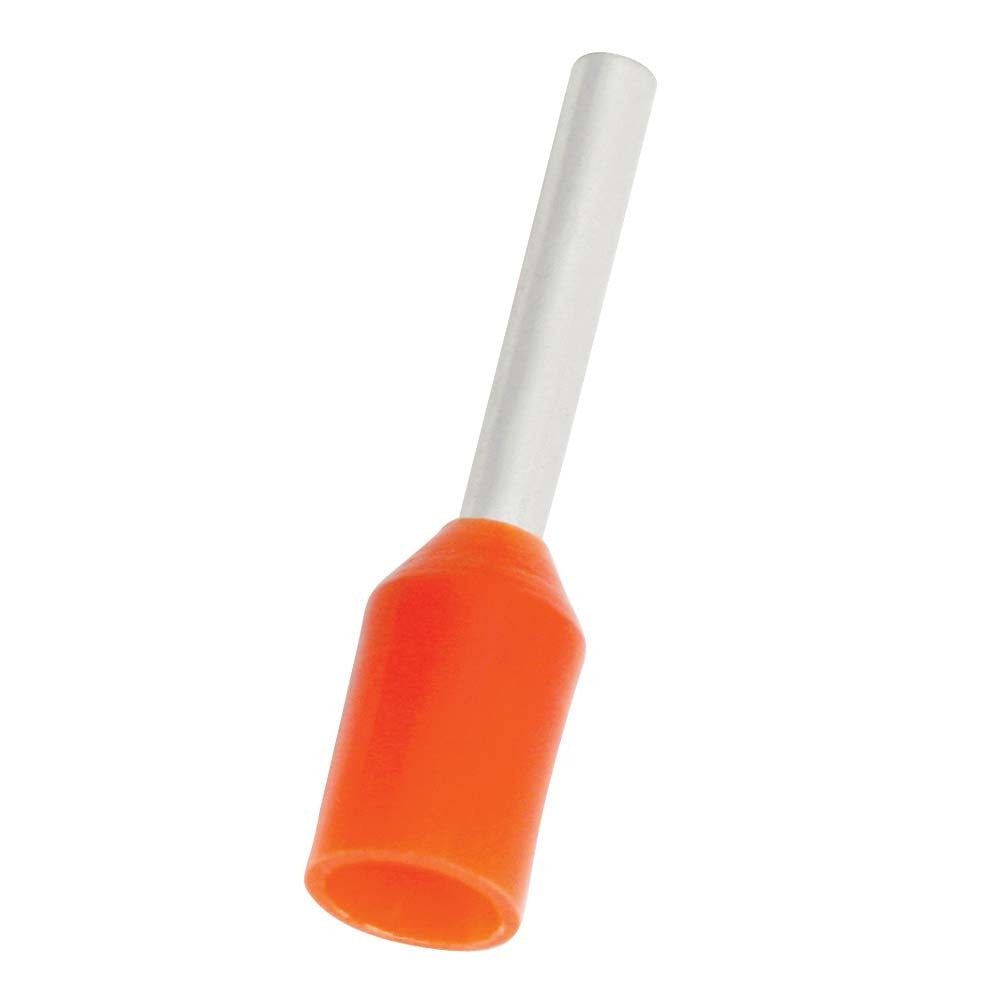

The VALUE COLLECTION E0508-ORANGE is a partially insulated wire ferrule designed to terminate stranded copper conductors in control panels, electrical enclosures, and terminal block wiring applications. The crimp-style connection creates a clean, vibration-resistant pin end that prevents wire strand fraying and ensures consistent contact within screw-clamp or push-in terminals. Compatible with 20 AWG conductors (0.5 mm2), the ferrule features a tin-plated copper pin that is 0.315 inches long with a 1 mm pin diameter. The orange nylon insulation collar provides quick visual identification of the 20 AWG gauge. Sold in a pack of 100.

These ferrules are suited for residential and commercial electrical work, industrial control wiring, HVAC low-voltage control panels, and automation panel builds where stranded wire must be terminated reliably into DIN-rail mounted terminal blocks or PLCs. The partially insulated design allows the insulation collar to seat flush into the terminal entry, reducing the chance of exposed conductor at the connection point. Electricians and panel builders commonly use these when wiring 20 AWG stranded conductors into equipment requiring a clean, professional termination.

Key Features

• Partially insulated nylon collar in orange for fast 20 AWG gauge identification
• Crimp connection type for secure, vibration-resistant wire termination
• Tin-plated copper contact for reliable conductivity and corrosion resistance
• Compatible with 20 AWG stranded conductors (0.5 mm2)
• Pin diameter of 1 mm fits standard terminal block entry sizes for this gauge
• Meets UL standards; pack of 100 for panel wiring projects

Compatibility

Designed for use with 20 AWG stranded copper conductors (0.5 mm2) and compatible with standard screw-clamp and push-in terminal blocks that accept a 1 mm pin diameter ferrule.

Installation Notes

Ferrules must be installed using a ratcheting crimp tool sized for 0.5 mm2 end sleeves to achieve a proper crimp geometry. Strip the conductor to match the pin length before inserting fully into the ferrule barrel before crimping. De-energize all circuits before terminating or re-terminating wiring in any panel or enclosure. Follow NEC and applicable local codes for conductor sizing, terminal torque, and enclosure wiring practices.
