Value Collection DP7X05008m6-050B Precision Dowel Pin 50pk

Product Description

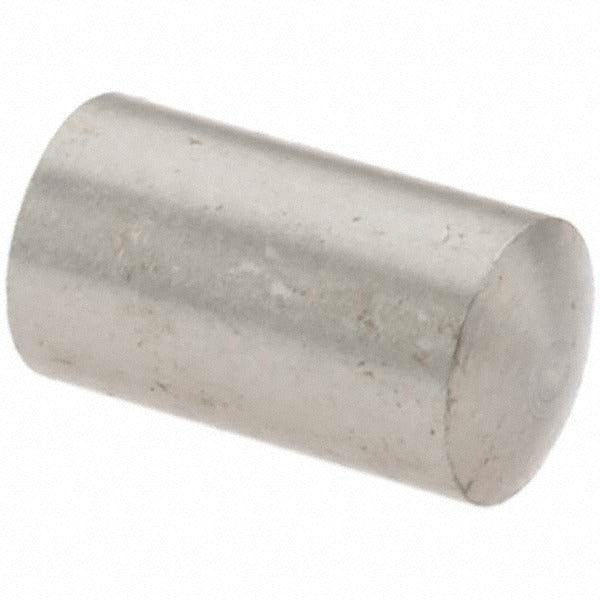

The VALUE COLLECTION DP7X05008m6-050B is a precision dowel pin machined from Grade 303 stainless steel. It measures 5 mm in diameter and 8 mm in overall length, with one beveled end and one rounded end. The pin is supplied in an unhardened condition, making it suitable for applications where controlled press-fit alignment is required without the risk of cracking hardened mating components. Each order includes 50 pins. Licensed machinists, tool-and-die technicians, and mechanical assemblers typically source this type of pin for jig, fixture, and component alignment work.

This pin is used in precision assembly applications across industrial manufacturing, tooling, and mechanical fabrication. The 5 mm diameter and 8 mm length suit compact alignment tasks in machinery components, fixtures, and modular assemblies where repeatable positional accuracy is critical. Grade 303 stainless steel provides corrosion resistance suitable for light washdown environments and general shop use. The diameter tolerance of 0.0040 to 0.0120 mm supports consistent slip-fit or light press-fit installation depending on the mating bore specification.

Key Features

• 5 mm diameter with a diameter tolerance of 0.0040 to 0.0120 mm for controlled fit
• 8 mm overall length suits compact alignment and locating applications
• One beveled end and one rounded end for guided insertion and positive seating
• Grade 303 stainless steel construction provides corrosion resistance in general shop and light washdown environments
• Supplied unhardened, reducing risk of damage to softer mating bores
• Pack of 50 pins per order for maintenance stock and production use

Compatibility

Designed as an OEM-style precision locating pin for use in jigs, fixtures, and mechanical assemblies requiring a 5 mm nominal dowel diameter.

Installation Notes

Installation is typically performed by machinists or mechanical assemblers using an arbor press or mallet with a pin driver sized to the dowel diameter. Confirm bore diameter and surface finish in the mating component before pressing to avoid galling on the stainless steel shank. Clean and deburr mating holes prior to assembly to maintain dimensional accuracy. Follow applicable shop standards and drawing tolerances for fit class when selecting bore size relative to the stated diameter tolerance.
