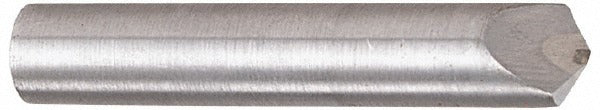

Value Collection DIA26065A Diamond Dresser 1/2 Carat

Product Description

The VALUE COLLECTION DIA26065A is a single-point diamond dresser used to true and dress abrasive grinding wheels in precision machining operations. Fitted with a lapped chisel-style diamond point, it reshapes and conditions wheel faces to maintain correct geometry and surface finish. The dresser features a 1/2 carat diamond, a chisel point shape with a 60-degree included angle, and a 7/16-inch shank diameter with a 2.5-inch shank length. It is a hand-held or fixture-mounted tool used by machinists and grinding machine operators to restore wheel concentricity and cutting action.

This diamond dresser is suited for use in tool rooms, production grinding cells, and maintenance shops where grinding wheel condition directly affects part tolerances and surface quality. The single-point lapped chisel configuration is commonly applied when dressing straight, cylindrical, or surface grinding wheels on manual or CNC grinding machines. It is appropriate for use across a range of wheel types where consistent point geometry is required.

Key Features

• Lapped chisel point for consistent, repeatable wheel contact geometry
• 1/2 carat diamond size provides durable dressing performance
• 60-degree included angle suitable for standard grinding wheel profiles
• 7/16-inch shank diameter fits common dresser holder sizes
• 2.5-inch shank length provides adequate reach for standard tool post and fixture mounts
• Single-point design allows controlled material removal from wheel face

Compatibility

Designed as an OEM-style replacement or direct-use diamond dresser for standard grinding machine dresser holders accepting a 7/16-inch shank diameter.

Installation Notes

Diamond dressers are installed and used by machinists or grinding machine operators following the machine manufacturer guidelines and applicable shop safety procedures. The grinding machine spindle must be stopped and all motion arrested before mounting or removing the dresser from the holder. The dresser should be secured firmly in the tool post or fixture to prevent movement during the dressing pass. Avoid applying excessive lateral force against the wheel face, as this can damage the diamond point.
