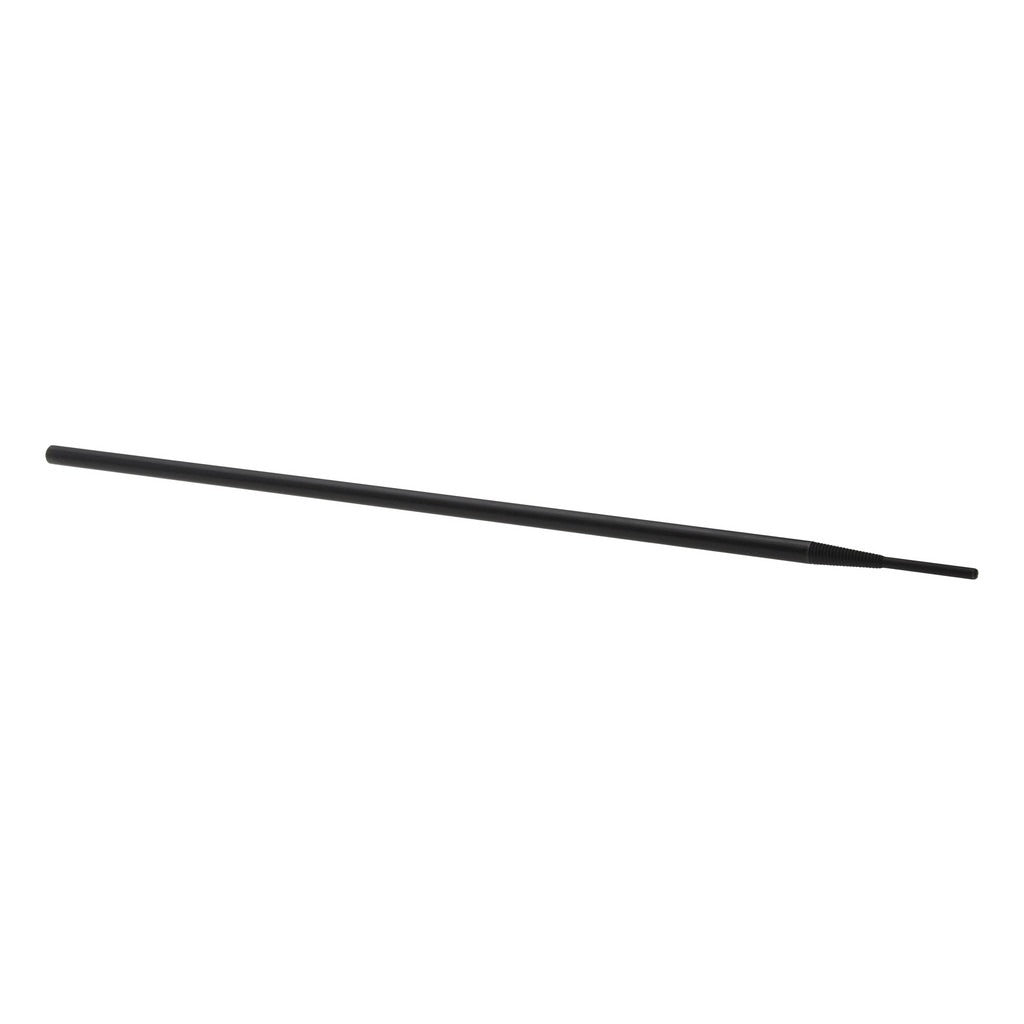

Value Collection CR-9-12 Cartridge Roll Mandrel

Product Description

The VALUE COLLECTION CR-9-12 is a cartridge roll mandrel designed to hold and drive cartridge rolls during grinding, deburring, and finishing operations. It features a 1/8 inch pilot diameter with a 1 inch pilot length, a 1/4 inch shank diameter, and a 10.5 inch shank length, bringing the overall assembly length to 12 inches. The quick-change design allows for fast cartridge roll swaps without removing the mandrel from the tool. Machinists, tool and die makers, and metal fabricators use this mandrel with rotary tools, die grinders, and drill presses to reach into bores, ports, and contoured surfaces.

This mandrel is suited for use in bore finishing, port blending, weld cleanup, and surface conditioning on metal workpieces. The extended shank length of 10.5 inches makes it practical for deep-reach applications where standard-length mandrels cannot access the work surface. It is compatible with cartridge rolls that fit a 1/8 inch pilot and is used in both production and maintenance shop environments.

Key Features

• 1/8 inch pilot diameter with 1 inch pilot length for secure cartridge roll retention
• 1/4 inch shank diameter fits standard die grinder and rotary tool collets
• 10.5 inch shank length provides extended reach into deep bores and recesses
• 12 inch overall length (OAL) for deep-reach grinding and finishing applications
• Quick-change design reduces downtime during cartridge roll replacement

Compatibility

Designed as a standard replacement and aftermarket mandrel for use with 1/8 inch pilot cartridge rolls in die grinders and rotary tools accepting a 1/4 inch shank.

Installation Notes

Installation is performed by machinists or metal fabricators using a standard collet chuck on a die grinder or rotary tool. Ensure the tool is powered off and disconnected from the air supply or electrical source before inserting or removing the mandrel. Secure the 1/4 inch shank fully into the collet and tighten to the tool manufacturer's specified torque before operation. Inspect the pilot and cartridge roll seating before running at speed to confirm the roll is properly seated.
