Value Collection CA6X10120 Carriage Bolt M10x1.50 120mm

Product Description

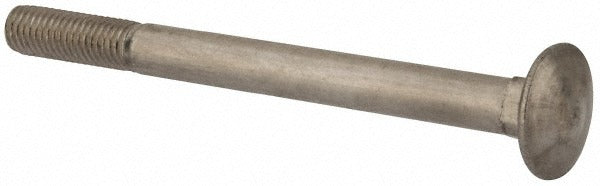

The VALUE COLLECTION CA6X10120 is an M10 x 1.50 carriage bolt with a 120 mm length under head and a square neck, manufactured from Austenitic Grade A2 stainless steel. The square neck seats into the work material to prevent rotation during installation, eliminating the need for a wrench on the bolt head. Conforming to DIN 603 standards, this fastener is suited for structural and general assembly applications where corrosion resistance is required. Machinists, millwrights, maintenance technicians, and fabricators use this type of fastener in both indoor and outdoor assemblies.

This carriage bolt is appropriate for metric fastener applications in light structural, woodworking, and general fabrication settings. The A2 stainless steel construction provides resistance to oxidation and mild corrosive environments, making it a common choice for outdoor equipment frames, walkways, handrails, and similar assemblies where galvanic and corrosion concerns apply. The DIN 603 standard ensures dimensional consistency for use with compatible metric hardware.

Key Features

• M10 x 1.50 metric thread for compatibility with standard metric nuts and hardware
• 120 mm length under head provides adequate thread engagement for medium-depth assemblies
• Square neck locks into substrate to prevent rotation during nut tightening
• Austenitic Grade A2 stainless steel construction for corrosion resistance in wet or outdoor environments
• Conforms to DIN 603 standard for consistent dimensional tolerances

Compatibility

Designed as a DIN 603-compliant metric carriage bolt for use with M10 x 1.50 metric nuts and washers in standard metric fastener applications.

Installation Notes

Install using standard hand tools; insert the bolt through the pre-drilled hole so the square neck draws into the material, then thread on the appropriate metric nut and tighten with a wrench. Always pre-drill the correct clearance hole diameter to allow the square neck to seat properly without splitting the substrate. Torque to the assembly specification defined by the project engineer or applicable structural standard. For stainless fasteners, apply an appropriate anti-seize compound to the threads to reduce the risk of galling during installation.
