Value Collection CA6X08025-050BX M8 Carriage Bolt A2 Ss Din 603 50pk

Product Description

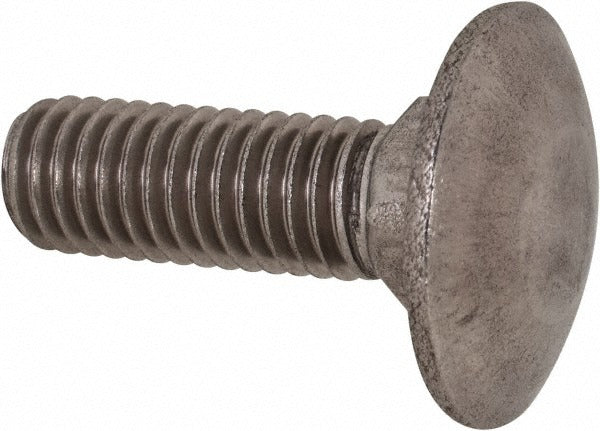

The VALUE COLLECTION CA6X08025-050BX is an M8 x 1.25 carriage bolt with a 25 mm length under head and a square neck, manufactured from Austenitic Grade A2 stainless steel. Carriage bolts are through-fasteners designed to be installed from one side of an assembly without requiring a wrench on the bolt head. The square neck seats into a mating hole or wood substrate, preventing rotation as a nut is tightened from the opposite side. Conforming to DIN 603, this bolt is suited for structural and mechanical assemblies where corrosion resistance and a smooth domed head profile are required. Sold in a box of 50.

This fastener is used in a wide range of light structural, marine, woodworking, and general mechanical applications where a flush, round-head appearance is needed on the visible face of the joint. The A2 stainless steel composition provides solid resistance to atmospheric corrosion and mild chemical exposure, making it appropriate for both indoor and outdoor assemblies. Typical installers include millwrights, maintenance mechanics, and construction tradespeople working with wood framing, metal brackets, or equipment panels that require a tamper-resistant, rotation-resistant fastener profile.

Key Features

• M8 x 1.25 thread profile with 25 mm length under head for precise metric fastening
• Square neck design locks into substrate or mating hole to prevent bolt rotation during tightening
• Austenitic Grade A2 stainless steel construction for corrosion resistance in outdoor and marine-adjacent environments
• Meets DIN 603 fastener standard for dimensional and performance consistency
• Smooth domed head provides a clean, flush appearance on the visible face of the assembly
• Sold in a minimum order box of 50 units for job-site and shop inventory stocking

Compatibility

Designed as a standard DIN 603 metric carriage bolt suitable for use in wood, metal, and composite assemblies requiring an M8 x 1.25 thread and a 25 mm grip length under head.

Installation Notes

Installation is typically performed by millwrights, carpenters, or general mechanics using standard hand or power tools. Always ensure the mating hole is sized appropriately to allow the square neck to seat fully and resist rotation before applying torque to the nut. Verify thread engagement and substrate clearance before final tightening. Do not use impact drivers directly on the domed head, as this can damage the head profile and compromise seating.
