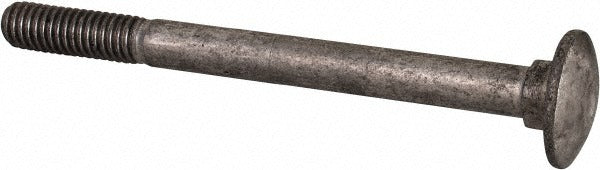

Value Collection CA6X06070-010BX M6 Carriage Bolt 70mm

Product Description

The VALUE COLLECTION CA6X06070-010BX is a metric carriage bolt with an M6 x 1.00 thread and a 70 mm length under head. The square neck beneath the domed head locks the bolt in place within the substrate, preventing rotation during nut tightening. Constructed from Austenitic Grade A2 stainless steel with a plain finish, this fastener provides solid corrosion resistance in wet, outdoor, and mildly corrosive environments. The partial thread design leaves a smooth shank section between the neck and the threaded portion, which helps maintain shear strength across the joint. Installers across mechanical, structural, and fabrication trades use this hardware where a flush, low-profile head and positive anti-rotation are required.

This carriage bolt suits metric fastening applications in residential, commercial, and light industrial settings. The M6 x 1.00 thread pitch and 18 mm thread length make it appropriate for clamping light-gauge assemblies, wood-to-metal connections, and equipment frames where a tamper-resistant, smooth-topped head is preferred. The A2 stainless steel construction is commonly chosen for marine-adjacent, food-service, or outdoor structural applications where mild steel would corrode. This bolt conforms to DIN 603, making it compatible with standard metric hardware of the same size and pitch.

Key Features

• M6 x 1.00 thread with 18 mm thread length for positive engagement in metric-tapped holes or with standard M6 hex nuts
• 70 mm length under head provides adequate grip range for typical light-to-medium structural assemblies
• Square neck locks against substrate to prevent bolt rotation during tightening without requiring a tool on the bolt head
• Austenitic Grade A2 stainless steel offers corrosion resistance suitable for wet and outdoor service
• Plain finish with no additional coating, keeping dimensions consistent with DIN 603 tolerances
• Partially threaded shank maintains shear strength along the unthreaded grip zone

Compatibility

Conforms to DIN 603 and is compatible with standard M6 x 1.00 metric hex nuts, washers, and threaded inserts. Designed as a direct-fit replacement or new-install fastener in any metric M6 carriage bolt application following DIN 603 specifications.

Installation Notes

Installation is typically performed by mechanical, structural, or fabrication tradespeople using standard hand or power tools. Pull the bolt through the substrate so the square neck seats fully into the mating hole before applying the nut, ensuring the anti-rotation feature is engaged before torquing. Always de-energize or isolate any equipment before replacing fasteners on live assemblies. Follow applicable structural or equipment codes for fastener torque and joint requirements.
