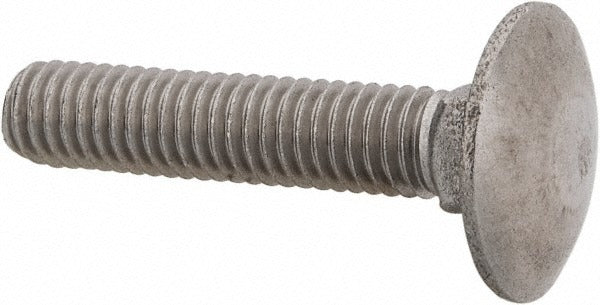

Value Collection CA6X06030-050BX Carriage Bolt M6 X 1

Product Description

The VALUE COLLECTION CA6X06030-050BX is an M6 x 1.00 metric carriage bolt with a 30 mm length under the head and a square neck profile. It is manufactured from Austenitic Grade A2 stainless steel, which provides corrosion resistance suitable for general industrial, construction, and mechanical assembly applications. The square neck seats into a mating hole to prevent rotation during installation, eliminating the need for a wrench on the bolt head. Sold in a minimum order quantity of 50 pieces, this fastener is sized for use with standard M6 hex nuts and washers and conforms to DIN 603 dimensional standards.

This carriage bolt is suited for structural connections, brackets, wood-to-metal assemblies, and general fabrication work where a clean, low-profile dome head finish is required on the visible face. Its metric thread pitch of 1.00 mm is standard for M6 fasteners, making it compatible with off-the-shelf M6 threaded hardware. Grade A2 stainless construction makes it an appropriate choice for outdoor, marine-adjacent, or high-humidity environments where mild steel fasteners would be prone to surface rust.

Key Features

• M6 x 1.00 metric thread with 30 mm length under the head per DIN 603
• Square neck design prevents bolt rotation during nut tightening without a secondary tool
• Austenitic Grade A2 stainless steel construction for corrosion resistance
• Conforms to DIN 603 fastener standard for dimensional consistency
• Sold in multiples of 50 pieces, suitable for production and repetitive assembly work

Compatibility

Designed as a DIN 603 metric carriage bolt for use with standard M6 hex nuts, flange nuts, and washers in metric fastener assemblies.

Installation Notes

Install using standard hand tools; insert the bolt through a pre-drilled hole sized to allow the square neck to seat flush and resist rotation. Tighten the mating M6 nut from the threaded end while the square neck locks the bolt in place. Torque to the value specified by the assembly design or applicable structural standard. Follow all applicable fastener installation guidelines and workplace safety procedures when working with power tools or in structural applications.
