Value Collection C8875036 Blind Rivet Size 66 100 Pack

Product Description

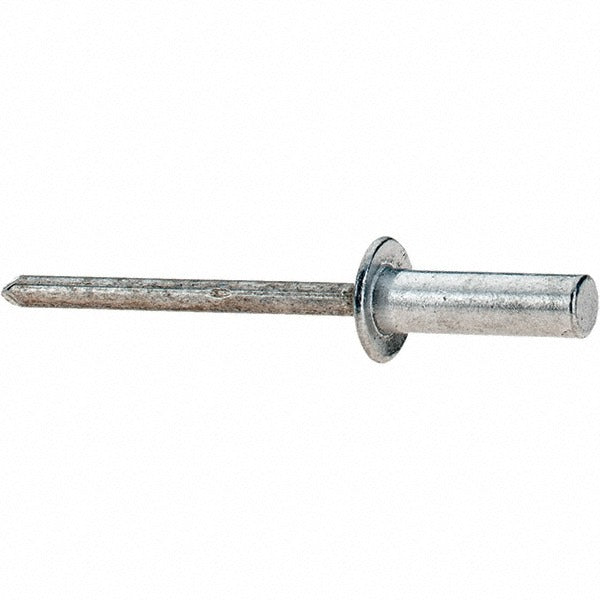

The VALUE COLLECTION C8875036 is a closed end sealing blind rivet designed for applications where the backside of a joint is inaccessible. The dome head profile and all-aluminum construction make this rivet well suited for lightweight assemblies requiring a watertight or contamination-resistant fastened joint. With a body diameter of 0.1875 inches and a grip range of 0.251 to 0.375 inches, this rivet accommodates a range of material stack thicknesses. Tensile strength is rated at 250 pounds and shear strength at 210 pounds, meeting IFI 126 Grade 9 standards. Each package contains 100 rivets.

This rivet is used in HVAC panel fabrication, sheet metal assemblies, electrical enclosures, and general trade work where a sealed blind fastener is required. The closed end design prevents moisture, air, and debris from passing through the rivet body after installation, making it appropriate for duct work, outdoor equipment housings, and corrosion-sensitive environments. Installation requires a standard blind rivet tool sized for a No. 11 drill hole.

Key Features

• Closed end design seals the rivet body against moisture and debris ingress
• Dome head profile with a head diameter of 0.375 inches and head height of 0.060 inches
• Grip range of 0.251 to 0.375 inches accommodates varying material thicknesses
• Tensile strength of 250 pounds and shear strength of 210 pounds
• Meets IFI 126 Grade 9 fastener standard
• All-aluminum body and mandrel rated at material grade 1100
• Packaged in quantities of 100 rivets per pack

Compatibility

Designed for use in applications requiring a No. 11 drill size hole with a minimum hole diameter of 0.192 inches and a maximum of 0.196 inches, suitable for standard blind rivet tools accepting size 66 rivets.

Installation Notes

Installation is performed with a standard hand or pneumatic blind rivet tool rated for the appropriate rivet body diameter. Ensure the mating hole is drilled to the specified diameter range of 0.192 to 0.196 inches before setting the rivet. Power down or de-energize any equipment before fastening panels or enclosures on live systems. Follow applicable codes and manufacturer assembly guidelines for the equipment being serviced.
