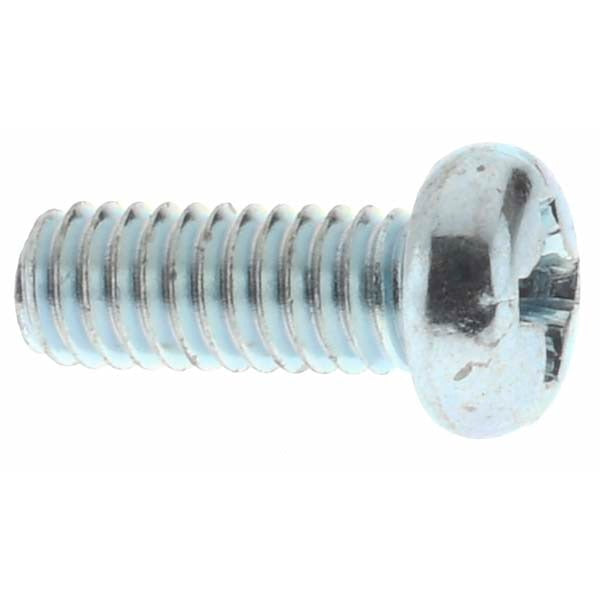

Value Collection C87424 Pan Head Phillips Screw M4x0.7

Product Description

The VALUE COLLECTION C87424 is a pan head, Phillips drive machine screw designed for general fastening applications in metal assemblies and light fabrication. Built to Grade 4.8 steel with a zinc-plated finish, this screw meets JIS-1111 fastener standards. The M4x0.7 thread size with a 10 mm length under head makes it a common choice for panel mounting, machine assembly, and electrical enclosure work. Sold in a pack of 100, it suits both bench-stock replenishment and job-lot use. The zinc coating provides basic corrosion resistance in dry to mildly humid environments.

This screw is suited for light to medium-duty fastening in metric-threaded applications. Typical uses include securing sheet metal panels, control enclosure components, and mechanical assemblies where a low-profile pan head and Phillips drive are required. The JIS-1111 standard designation makes it appropriate for equipment manufactured to Japanese industrial specifications as well as general metric assembly work across HVAC, electrical, and light mechanical trades.

Key Features

• M4x0.7 metric thread for consistent fit in standard metric-tapped holes
• 10 mm length under head suits thin to medium panel thickness applications
• Pan head profile distributes clamping load across the fastened surface
• Phillips drive compatible with standard No. 2 Phillips bits and screwdrivers
• Zinc-plated finish provides basic corrosion resistance
• Grade 4.8 steel meets JIS-1111 fastener standard
• Pack of 100 units supports bench-stock and repetitive assembly tasks

Compatibility

Designed as an OEM-style replacement or general-use fastener for metric-threaded assemblies requiring an M4x0.7 pan head Phillips machine screw per JIS-1111 specifications.

Installation Notes

Installation is performed by hand or with a No. 2 Phillips bit driver. Ensure the receiving hole is properly tapped to M4x0.7 before driving. Do not overtighten Grade 4.8 fasteners in soft or thin materials, as the lower tensile rating compared to higher-grade fasteners increases the risk of thread stripping. Follow applicable assembly specifications for torque guidance.
