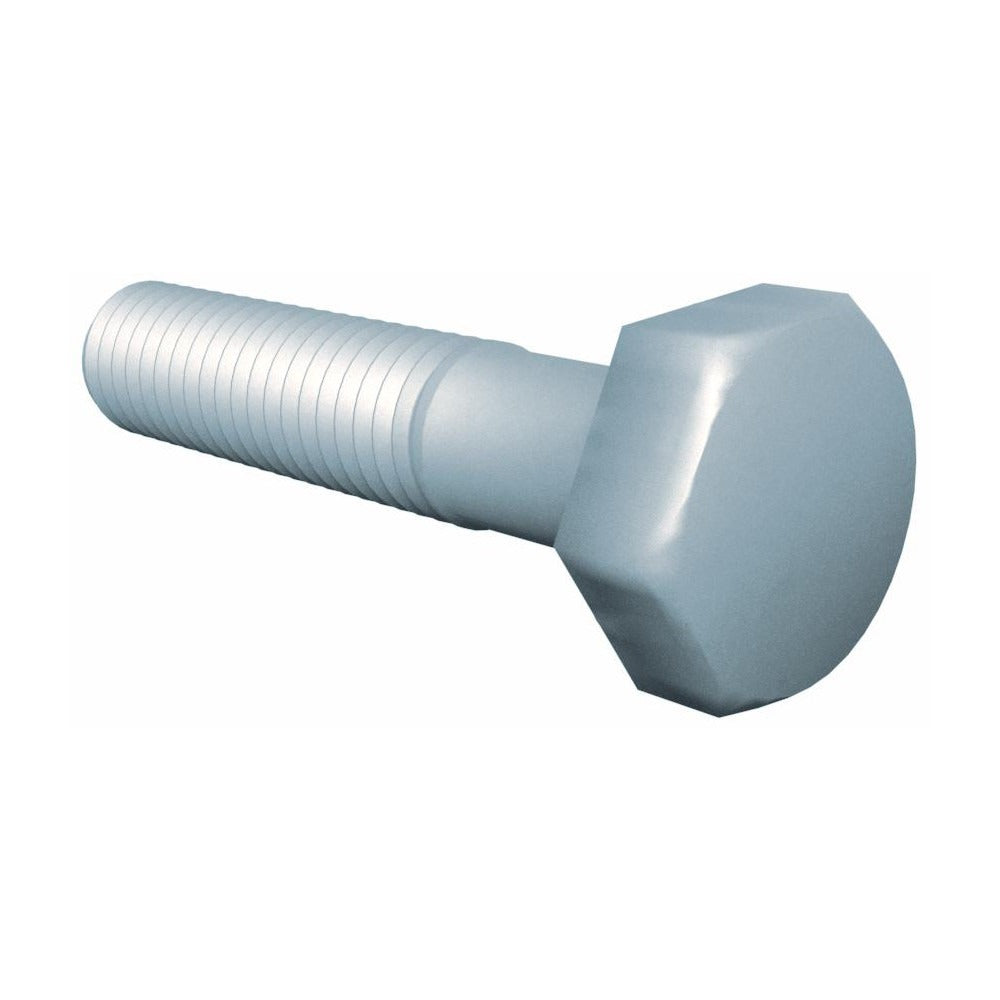

Value Collection C86232 Hex Head Cap Screw M16 X 2.00

Product Description

The VALUE COLLECTION C86232 is a metric hex head cap screw designed for general mechanical fastening applications where dimensional precision and load-rated steel are required. The fastener measures M16 x 2.00 thread pitch with a 90 mm length under head and is manufactured from Grade 8.8 steel, indicating a tensile strength class suited to structural and machinery assembly. A zinc-plated finish provides a baseline level of corrosion resistance. The hex drive measures 24 mm across flats. Threading is partial, conforming to DIN 931 and ISO 4014 standards, which govern partially threaded metric hex bolts with an unthreaded shank section. Sold in a package quantity of 5.

This screw is appropriate for metalworking, fabrication, equipment assembly, and structural bolting tasks that call for a metric fastener at the M16 diameter class. The partially threaded shank — per DIN 931 and ISO 4014 — makes it well suited to clamped joint assemblies where the unthreaded portion passes through a clearance hole and the thread engages a nut or tapped bore. Typical users include millwrights, fabricators, maintenance mechanics, and general contractors working in metric-standard environments.

Key Features

• Grade 8.8 steel construction — medium-high strength metric fastener class
• M16 x 2.00 thread specification, 90 mm length under head
• Partially threaded shank per DIN 931 and ISO 4014 standards
• 24 mm hex drive for standard metric wrenching
• Zinc-plated finish for basic corrosion resistance
• Packaged in quantities of 5 per package

Compatibility

Designed as a standard metric replacement or assembly fastener for any application requiring an M16 x 2.00 partially threaded hex head cap screw conforming to DIN 931 or ISO 4014 specifications.

Installation Notes

Installation is performed using a 24 mm open-end, box, or socket wrench. Confirm that mating thread pitch and engagement depth meet the requirements of the joint design before final assembly. Do not exceed the rated tensile class of the fastener by applying improper torque or using it in load conditions outside Grade 8.8 specifications. Follow applicable mechanical and structural codes for fastener selection and torque procedures.
