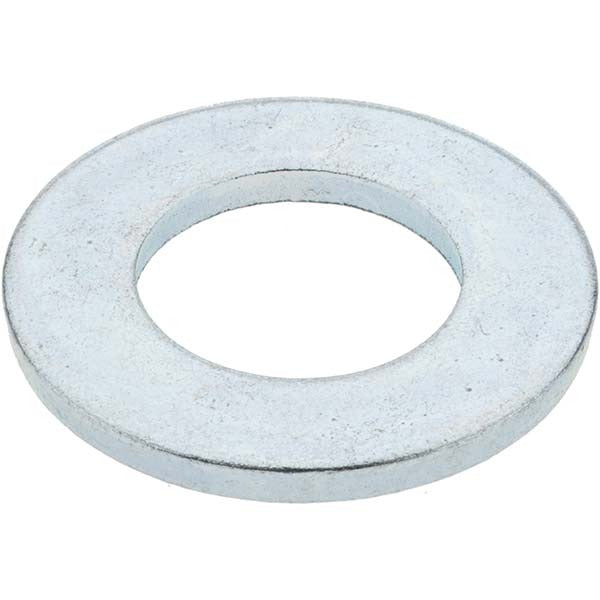

Value Collection C82925 Sae Flat Washer 7/8 in Steel

Product Description

The VALUE COLLECTION C82925 is a Grade 8 steel SAE flat washer designed for 7/8 inch screw sizes. It features a zinc-plated finish that provides corrosion resistance in standard indoor and light-duty outdoor applications. With a 15/16 inch inside diameter, 1-3/4 inch outside diameter, and 5/32 inch thickness, this washer meets SAE dimensional standards for load distribution under bolt and nut bearing surfaces. It is a fastener-hardware staple used by mechanical contractors, maintenance technicians, and general tradespeople working across HVAC, plumbing, electrical, and structural assembly applications.

This SAE flat washer is suited for bolted connections where a wider bearing surface is needed to distribute clamping load or prevent pull-through in softer base materials. The SAE standard specifies a narrower outside diameter relative to USS washers, making it appropriate for close-tolerance assemblies. Typical use cases include equipment mounting, bracket fastening, and general mechanical assembly in residential and light commercial environments. The zinc plating provides adequate protection in dry or mildly humid service conditions.

Key Features

• Grade 8 steel construction for high-strength fastener applications
• Zinc-plated finish for corrosion resistance in standard service environments
• SAE dimensional standard with 15/16 inch ID and 1-3/4 inch OD
• 5/32 inch thickness provides consistent load distribution under fastener heads
• Inch measurement system compatible with standard SAE hardware

Compatibility

Designed for use with 7/8 inch screws and bolts following SAE flat washer dimensional standards. Suitable for use with Grade 8 or lower-grade fasteners in standard bolted assemblies.

Installation Notes

Install with the washer seated flat against the bearing surface before tightening the fastener. Ensure the inside diameter clears the fastener shank without excessive play. Always torque fasteners according to the equipment manufacturer specifications or applicable structural standards. Power down or de-energize any equipment before accessing fastened assemblies in electrical or mechanical enclosures.
