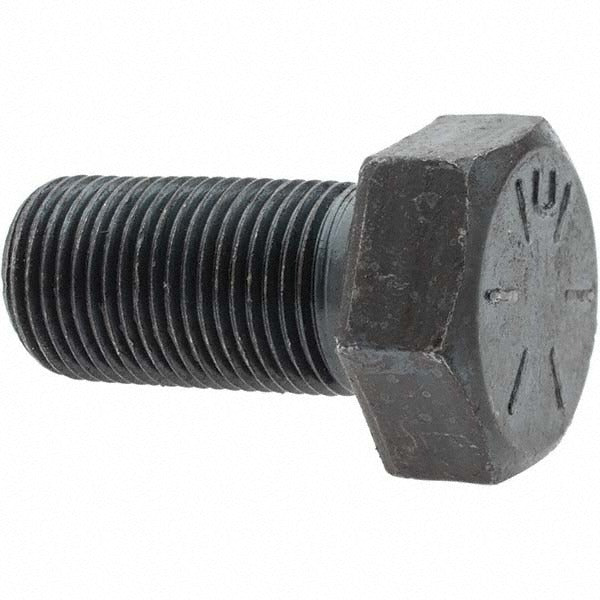

Value Collection C703505 Hex Head Cap Screw 3/4-16 Grade 8

Product Description

The VALUE COLLECTION C703505 is a 3/4-16 UNF hex head cap screw measuring 1-1/2 inches under the head, manufactured from Grade 8 steel with no finish coating applied. Grade 8 steel provides high tensile strength suitable for demanding mechanical and structural fastening applications. The screw is fully threaded along its entire shank length and conforms to ASME B18.2.1 dimensional standards. This fastener is installed by mechanical contractors, millwrights, equipment technicians, and general maintenance trades wherever high-strength inch-series threaded fasteners are required.

This screw is suited for use in industrial machinery, heavy equipment assemblies, structural steel connections, and other applications requiring a high-strength UNF fastener. The 3/4-16 fine thread pitch offers increased thread engagement and improved resistance to loosening under vibration compared to coarse thread equivalents. The uncoated finish is appropriate for applications where a secondary coating will be applied or where bare steel is specified. Sold in a package quantity of 25.

Key Features

• Grade 8 steel construction for high tensile and proof load strength
• 3/4-16 UNF fine thread for improved vibration resistance and thread engagement
• Fully threaded shank along the entire 1-1/2 inch length under head
• Uncoated finish suitable for applications requiring bare steel or field-applied coatings
• Conforms to ASME B18.2.1 hex head cap screw dimensional standard
• Packaged in quantities of 25 per pack

Compatibility

Designed as a standard ASME B18.2.1 hex head cap screw for use in any application calling for a 3/4-16 UNF fully threaded Grade 8 inch-series fastener.

Installation Notes

Installation is performed by qualified mechanical or maintenance trades using appropriate hex wrenches or impact tools rated for 3/4-inch fasteners. Always verify that the mating threaded hole or nut is rated for Grade 8 load requirements before torquing. Follow applicable equipment manufacturer torque specifications and relevant codes such as AISC or OEM service documentation. Do not mix Grade 8 fasteners with lower-grade nuts or threaded inserts.
