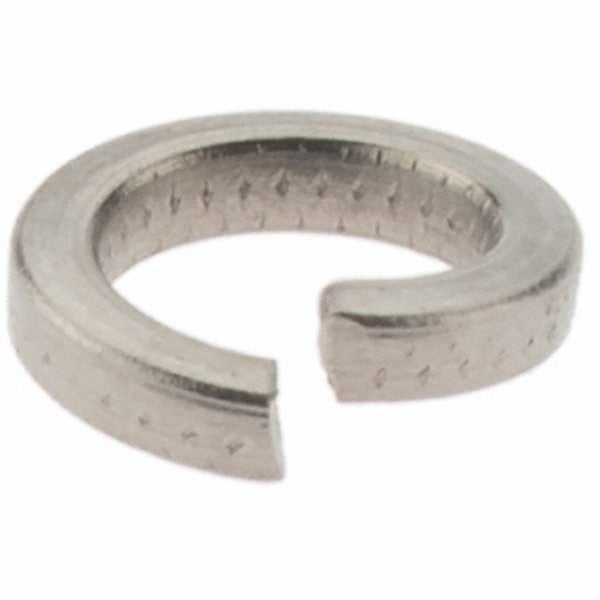

Value Collection C52000809 High Collar Split Lock Washer

Product Description

The VALUE COLLECTION C52000809 is a high collar split lock washer designed for Number 8 screws. Made from 18-8 stainless steel in an uncoated finish, this washer provides reliable tension retention and resistance to loosening caused by vibration. The high collar design increases the contact surface between the fastener head and the mating material, distributing clamp load more effectively than standard split lock washers. With an inside diameter range of 0.168 to 0.175 inches and a maximum outside diameter of 0.267 inches, it is sized precisely for Number 8 fastener applications. Electricians, plumbers, HVAC technicians, and general mechanical trades use these washers wherever secure fastener retention is required.

This washer is suited for light-duty mechanical assemblies, electrical enclosures, control panel mounting, and general hardware applications where Number 8 screws are used. The 18-8 steel composition offers good corrosion resistance in mild environments, making it appropriate for both indoor and sheltered outdoor installations. Supplied in a package quantity of 100 with a minimum order quantity of 1, this part supports both small-scale repair work and higher-volume service operations.

Key Features

• High collar design increases bearing surface for improved clamp load distribution
• 18-8 stainless steel construction provides corrosion resistance in mild environments
• Uncoated finish suitable for standard mechanical and electrical applications
• Inside diameter range of 0.168 to 0.175 inches fits Number 8 screw shafts precisely
• Packaged in quantities of 100 to support service stock and bulk repair needs
• Inch measurement system with 0.047 inch thickness for consistent dimensional performance

Compatibility

Designed as an OEM-style replacement or service-stock split lock washer for use with Number 8 screws in standard inch-measurement fastener applications.

Installation Notes

Install with the split gap seated against the fastener head or mating surface before driving the screw to final torque. Ensure the mating surface is clean and free of debris so the washer seats flush. Follow applicable mechanical or electrical codes when used in panel or enclosure assemblies. Do not reuse a washer that has been fully compressed flat, as it will no longer provide effective spring tension.
