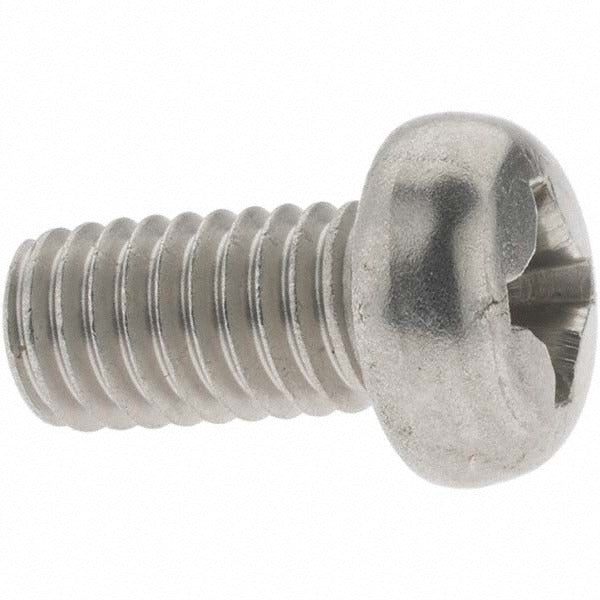

Value Collection C30130 Pan Head Phillips Screw M6 50pk

Product Description

The VALUE COLLECTION C30130 is a metric pan head machine screw with a Phillips drive, manufactured from grade 18-8 A2 stainless steel with a bright, uncoated finish. This fastener carries an M6x0.10 thread and a 12mm length measured under the head, conforming to JIS-1111 standard. The 18-8 A2 stainless construction provides solid corrosion resistance across general-purpose industrial, mechanical, and maintenance applications. Each package contains 50 screws. Installers working in metric environments will find this screw sized and threaded for direct use without conversion. It ships without a washer, so a separate washer should be specified if the application requires one.

This screw is suited for light-to-medium fastening tasks in mechanical assemblies, equipment panels, enclosures, and general fabrication work where metric fasteners and corrosion-resistant material are required. The pan head profile sits low and distributes clamping force over a wider bearing surface than a flat head, making it a common choice for sheet metal, plastic panels, and thin-material assemblies. The Phillips recess is compatible with standard Phillips bit drivers in sizes appropriate for M6 hardware.

Key Features

• M6x0.10 metric thread for direct use in standard M6 tapped holes
• 12mm length under head per JIS-1111 standard
• Pan head profile provides broad bearing surface on panel and thin-material assemblies
• Grade 18-8 A2 stainless steel construction for corrosion resistance
• Bright, uncoated finish — no post-installation coating concerns
• Sold in a 50-piece package, MOQ of 1 package

Compatibility

Designed for use in any M6x0.10 tapped hole or clearance application requiring a pan head Phillips fastener conforming to JIS-1111. No specific equipment compatibility was provided in the product data.

Installation Notes

Installation is performed with a Phillips bit driver of the correct size for M6 hardware — using an undersized bit risks cam-out and fastener damage. Torque to the specification required by the host assembly design; no torque value is provided for this fastener in the available product data. Stainless steel fasteners are susceptible to galling during installation — apply an appropriate anti-seize compound when thread galling is a concern. This screw ships without a washer; add one if the application requires load distribution or surface protection.
