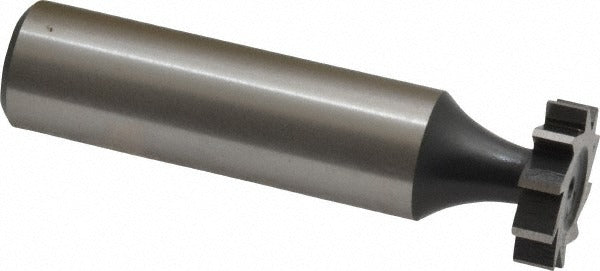

Value Collection C2100505 Woodruff Keyseat Cutter Cobalt

Product Description

The VALUE COLLECTION C2100505 is a Woodruff keyseat cutter designed for milling Woodruff key slots in shafts and other machined components. Built from M42 cobalt high-speed steel, it delivers strong wear resistance and heat resistance in demanding cutting applications. The cutter measures 0.625 inches in diameter with a cutting width of 0.1563 inches and mounts on a 1/2-inch shank. Overall length is 2.1563 inches. The straight-tooth configuration and 8-tooth count provide clean, controlled cuts in ferrous and non-ferrous metals. The bright, uncoated finish is standard for general-purpose shop use.

This keyseat cutter is suited for manual milling machines and CNC machining centers where Woodruff keyway slots are required during shaft fitting and assembly operations. It conforms to ANSI Standard 505 (Old Standard 6), making it a direct fit for shops working to standard Woodruff key specifications. Typical applications include maintenance machining, toolroom work, and production setups in metalworking, automotive, and industrial equipment repair environments.

Key Features

• M42 cobalt construction for extended tool life in tough materials
• 0.625-inch cut diameter and 0.1563-inch cut width to ANSI 505 specification
• 1/2-inch straight shank for compatibility with standard milling machine collets and arbors
• 8 straight teeth for clean slot finish and controlled chip load
• Bright, uncoated finish for general-purpose use across a range of workpiece materials
• 2.1563-inch overall length for adequate reach in standard setups

Compatibility

Designed as an OEM-style replacement or standard toolroom cutter conforming to ANSI Standard 505 and Old Standard Number 6 for Woodruff keyseat applications.

Installation Notes

Installation and use of this cutter is typically performed by machinists or skilled toolroom technicians. Power down and lock out the milling machine before mounting or removing the cutter from the collet or arbor. Ensure the shank is fully seated and the collet is properly torqued before beginning any cut. Follow established shop safety practices and wear appropriate eye protection during all milling operations.
