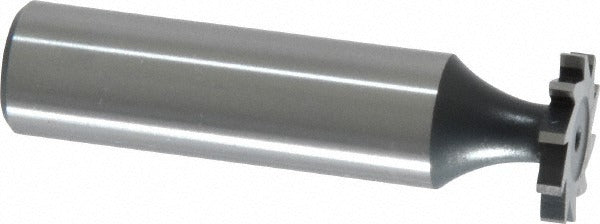

Value Collection C2100305 Woodruff Keyseat Cutter Cobalt

Product Description

The VALUE COLLECTION C2100305 is a Woodruff keyseat cutter designed for cutting keyseat slots in shafts and bores. It features a 0.625 inch cut diameter and a 0.0938 inch cut width, making it suited for precise slot milling operations. The cutter is manufactured from M42 cobalt high-speed steel, offering improved hardness and heat resistance compared to standard M2 tooling. The bright, uncoated finish is retained to preserve the base material properties. With a 0.5 inch shank diameter and a 2.0938 inch overall length, it mounts directly into standard milling machine arbors or collet holders. Machinists and tool-and-die professionals use this cutter for shaft keyway preparation on manual and CNC milling equipment.

This cutter conforms to ANSI Standard 305, Old Standard Number 4, making it a recognized size within standard keyseat cutter series. It is appropriate for use in machine shops, maintenance facilities, and production environments where shaft-to-hub keyway fits are required. The straight tooth configuration provides clean, consistent cuts in ferrous and non-ferrous materials. Eight teeth deliver a balance of chip clearance and cutting edge engagement suitable for moderate feed rates and typical keyseat depth requirements.

Key Features

• M42 cobalt high-speed steel construction for improved heat and wear resistance over standard M2
• Straight tooth configuration for clean keyseat slot cutting
• 8 teeth for balanced chip clearance and consistent cut engagement
• Bright, uncoated finish preserving base cobalt material properties
• Conforms to ANSI Standard 305, Old Standard Number 4
• 0.5 inch shank diameter for compatibility with standard milling arbors and collet holders

Compatibility

Designed as an ANSI-standard Woodruff keyseat cutter conforming to ANSI 305, Old Standard 4, for use in standard milling setups requiring a 0.625 inch cut diameter and 0.0938 inch cut width.

Installation Notes

Installation and use of this cutter should be performed by qualified machinists on properly maintained milling machines. Secure the shank firmly in the arbor or collet holder before operation and verify runout before cutting. Always power down and lock out the machine before changing or inspecting tooling. Follow applicable shop safety standards and machine manufacturer guidelines for cutter RPM and feed rate selection.
