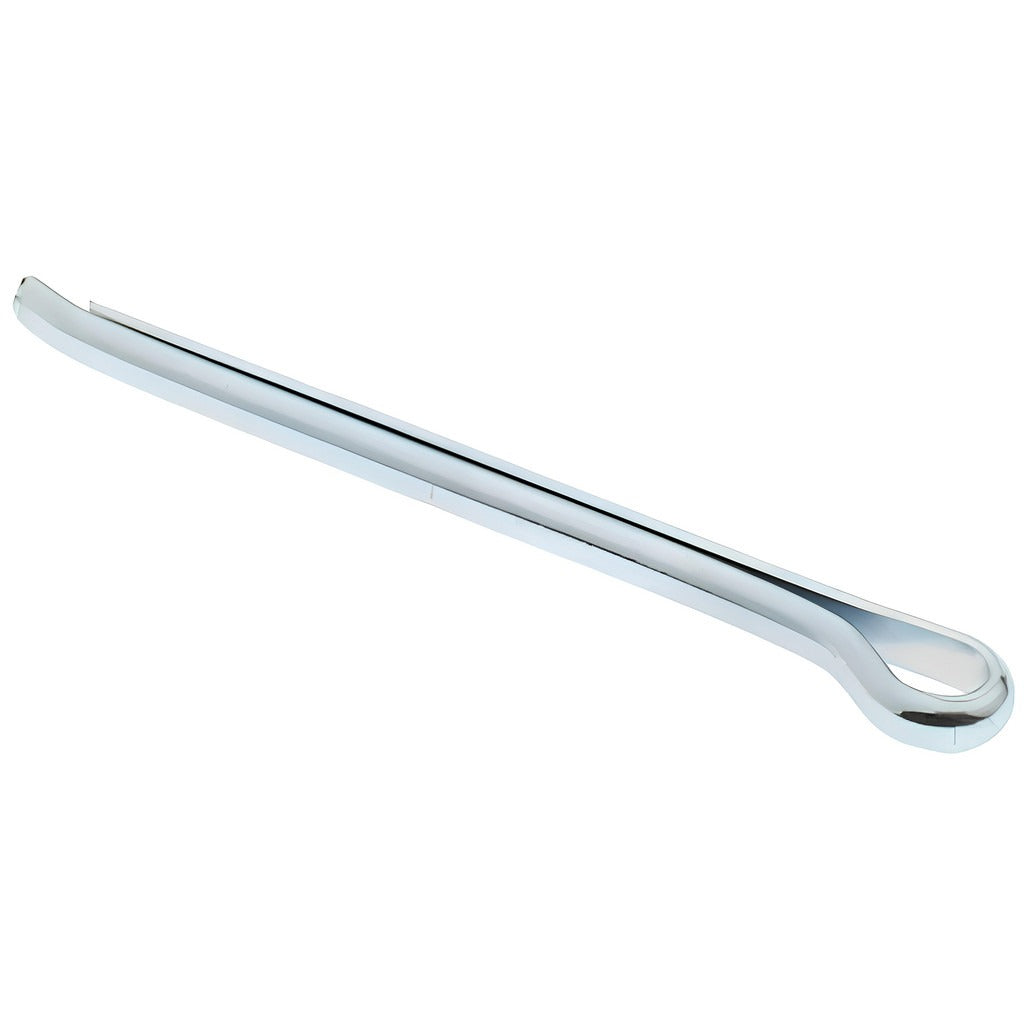

Value Collection C207-CPHZ125175 Hammerlock Cotter Pin

Product Description

The VALUE COLLECTION C207-CPHZ125175 is a hammerlock cotter pin designed for securing clevis pins, shaft assemblies, and fastener connections in mechanical and industrial applications. Manufactured from Grade 2 steel with a zinc-plated finish, this pin measures 0.125 inches in diameter and 1.75 inches in length. The hammerlock design allows the looped end to lock back over itself after installation, providing a secure hold without the need for spreading tines. Licensed technicians and maintenance professionals in HVAC, plumbing, equipment service, and general mechanical trades will find this pin suitable for a wide range of pin-retention tasks.

This cotter pin is suited for use in residential and light commercial equipment assemblies where a reliable, tamper-resistant pin retention solution is required. Typical applications include linkage assemblies, clevis connections, and pivot-point fastening in mechanical equipment. The zinc plating provides corrosion resistance for moderate-exposure environments. This item is sold individually and is subject to a minimum order quantity of 100 units.

Key Features

• Hammerlock design locks back over itself for secure, tool-minimal installation
• Grade 2 steel construction provides reliable tensile and shear strength for standard mechanical loads
• Zinc-plated finish resists corrosion in moderate-exposure environments
• Meets ASME B18.8.1 dimensional standards
• RoHS compliant
• Compact 0.125 inch diameter by 1.75 inch length suits tight clearance applications

Compatibility

Designed as a standard-dimension hammerlock cotter pin per ASME B18.8.1, suitable for use in mechanical assemblies requiring a 0.125 inch diameter pin retention fastener.

Installation Notes

Hammerlock cotter pins are installed by threading the pin through the hole and folding the looped end back over the shank to lock it in place. Always de-energize and isolate equipment before servicing any fastener or linkage assembly. Verify pin diameter and length against the application hole tolerance before installation. Do not reuse cotter pins that have been removed from service.
