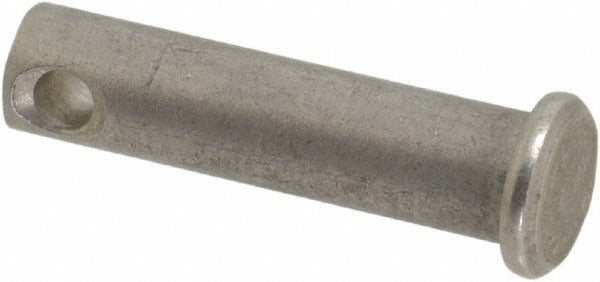

Value Collection C207-CLPS312125 Clevis Pin 5/16in

Product Description

The VALUE COLLECTION C207-CLPS312125 is a standard clevis pin designed for use in mechanical linkage and fastening applications. It features a 5/16-inch pin diameter and a 1-1/4-inch overall length (OAL), with a 1-7/64-inch usable length and a 9/64-inch cotter hole. The flat head design measures 0.434 inches in diameter. Constructed from 18-8 stainless steel with a plain uncoated finish, this pin provides reliable corrosion resistance in light-duty and moderate-duty mechanical assemblies. Maintenance technicians and mechanical tradespeople typically install this hardware during equipment linkage, clevis bracket, and yoke assembly work.

This clevis pin suits a wide range of industrial and trade applications where a removable, load-bearing pivot or linkage pin is needed. Common uses include HVAC control linkages, mechanical actuator assemblies, valve yokes, and general equipment maintenance scenarios. The plain finish keeps it compatible with assemblies where coating thickness tolerances are critical. Its compact overall length makes it appropriate for tight clevis and bracket configurations in both residential and light commercial equipment.

Key Features

• 5/16-inch pin diameter with 1-1/4-inch overall length for compact linkage applications
• 1-7/64-inch usable length with 9/64-inch cotter pin hole for secure retention
• 18-8 stainless steel construction provides corrosion resistance in exposed or washdown environments
• Flat head design with 0.434-inch head diameter for positive bearing surface
• Plain uncoated finish maintains precise dimensional tolerances
• RoHS compliant materials

Compatibility

Designed as a standard-dimension clevis pin for use in mechanical linkage assemblies, actuator yokes, and clevis bracket applications where a 5/16-inch pin diameter and 1-1/4-inch OAL are specified.

Installation Notes

Installation is typically performed by maintenance mechanics or licensed tradespeople during equipment assembly or linkage adjustment. De-energize and lock out all associated mechanical or electrical systems before removing or installing pivot pins. A standard cotter pin or clip should be inserted through the 9/64-inch hole to retain the pin after installation. Do not use this pin in applications that exceed its material or dimensional specifications.
