Value Collection C18272 U Nut No. 8 Spring Steel 50 Pack

Product Description

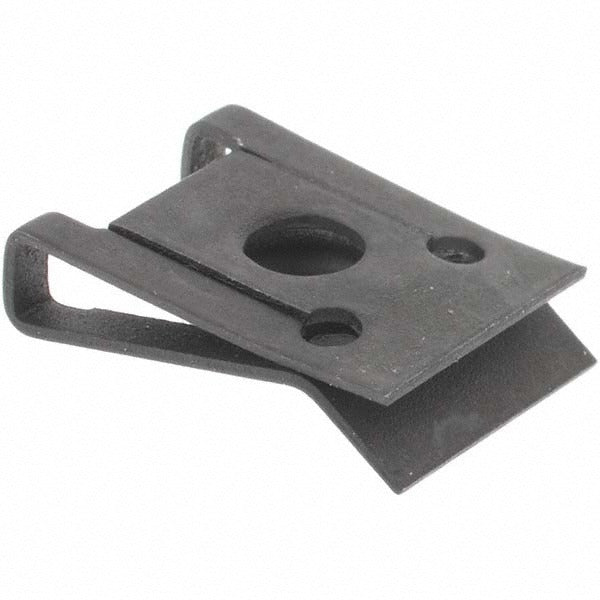

The VALUE COLLECTION C18272 is a Number 8 screw-size U nut made from spring steel with a black phosphate finish. U nuts, also called speed nuts or spring nuts, clip onto panel edges or flanges and provide a captive threaded fastening point without requiring access to the back side of the material. This fastener accepts material thicknesses from 0.025 inches to 0.125 inches and is installed by mechanical, electrical, HVAC, and general trade technicians wherever rapid, tool-minimal panel assembly is required. Each package contains 50 pieces.

This U nut is suited for light-gauge sheet metal panel assembly in HVAC equipment, electrical enclosures, and control cabinets. The spring steel construction provides consistent clamp force across the stated material thickness range. The black phosphate coating offers mild corrosion resistance and reduces galling during installation. Typical applications include securing access panels, cover plates, and interior sub-assemblies where a floating or captive nut is preferable to welded or press-fit hardware.

Key Features

• Spring steel construction delivers reliable clip retention and thread engagement
• Black phosphate finish provides mild corrosion resistance and low-glare appearance
• Fits material thickness range of 0.025 inches to 0.125 inches
• Number 8 screw size suits common sheet metal panel fastening applications
• 50-piece pack quantity supports production or service inventory needs

Compatibility

Designed as a standard Number 8 screw-size U nut for use with light-gauge sheet metal panels and flanges in the 0.025-inch to 0.125-inch material thickness range, common in HVAC equipment cabinets and electrical enclosures.

Installation Notes

U nuts are typically installed by hand or with light plier pressure onto a panel edge or flange before the mating screw is driven. Ensure the panel or flange thickness falls within the 0.025-inch to 0.125-inch range to achieve proper spring clamping and thread engagement. De-energize any electrical enclosure before servicing panels that use these fasteners. Avoid overdriving the mating screw, as excessive torque can distort the spring clip and reduce retention force.
